| Brand Name: | KINGSINE |
| Model Number: | KT210 |
| MOQ: | 1 set |
| Price: | Negotiation |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C,T/T |

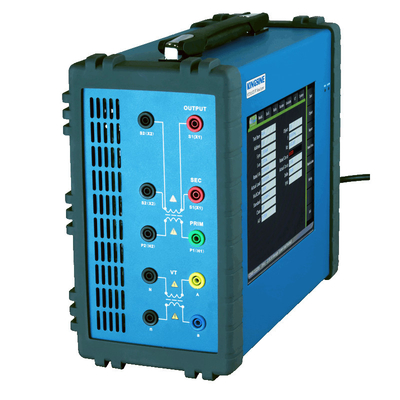

ANSI30 CT Analyzer KINGSINE KT210 CT Test Set Current Transformer Analyzer
Discription of CT Test Set
Complete measurement function, it can test all type current transformer for secondary overload, secondary loop resistance, excitation characteristic, transient characteristic, ratio difference, angle difference and polarity. It can also test exact limit coefficient(ALF), device security coefficient(FS), secondary time constant(Ts), remanence coefficient(Kr), transient area coefficient(Ktd), inflexion voltage, current, level, saturation inductance, un-saturation inductance, 5% 10% error curve, of current transformer, hysteresis loop for current transformer, and evaluate test result according to defined standard.
Feature Of CT Parameters Test
| ● | Secondary burden measurement |
| ● | Automatic demagnetization of the CT after the test |
| ● | Small and lightweight (< 8 kg) |
| ● | Short testing time due to fully automatic testing |
| ● | High level of safety using patented variable frequency method (max. 120 V) |
| ● | "Nameplate guesser" function for CTs with unknown data |
| ● | PC control interface |
Specification Of CT Test Device
| Voltage Measurement Input | |
| Secondary Input Range | 0~300V |
| Max Knee point | 30KV |
| Secondary Input Accuracy | ±0.1% |
| Primary Input Range | 0~30V |
| Primary Input Accuracy | ±0.1% |
| Output | |
| Output Voltage | 0 Vac to 120 Vac |
| Output Current | 0 A to 5 A (15 A peak) |
| Output Power | 0 VA to 450 VA (1500 VA peak) |
| Main Power Supply | |
| Input Voltage | 176 Vac to 264 Vac @ 10A Max |
| Permissible Input Voltage | 120 Vdc to 370 Vdc @ 5A Max |
| Frequency | 50 / 60 Hz |
| Permissible Frequency | 47 Hz to 63 Hz |
| Connection | Standard AC socket 60320 |
| Physical Dimensions | |
| Size (W x H x D) | 360 x 140 x 325mm |
| Weight | <8 kg (without accessories) |
| Environment Conditions | |
| Operating Temperature | -10°C up to + 55°C |
| Storage Temperature | -25°C up to + 70°C |
| Humidity | Relative humidity 5% up to 95% not condensing |
Advantage Of Current Transformer Analyzer
Easy to operate CT / PT Analyzer,
120V / 15A Current Output,
9.7 inch touch screen operation,
IEC60044-1, IEC60044-6, IEC61869-2, ANSI30/45 standard
High stability for bushing CT testing;
F&A
Q: 1. How many countries have KINGSINE exported so far ?
A: KINGSINE brand products have been successfully served clients across more than 70 countries worldwide, inclusive of ABB, SIEMENS, SCHNEIDER, GE etc.
Q: 2. What is the lead time for delivery?
A: It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
Q: 3. Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.
|
