7 Channels K68i Protection Relay Testing with TFT LCD Display
Description of K68i Protection Relay Test Set
7 Channels (4x300V & 3x35A) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 20x harmonics.
Variable battery simulator, DC 0-300V, 120Watts max.
Quick relay testing facility in Manual mode.
3x35A & 4x300V independent high burden and accuracy output channels
Lightweight, <20.5Kg

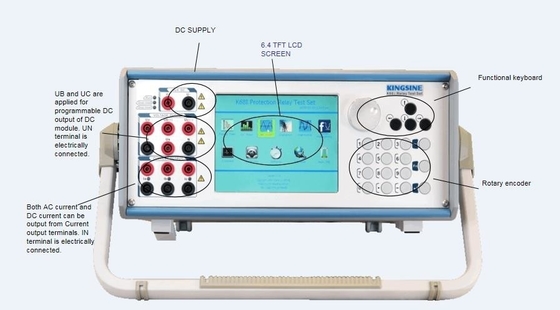

Inbuilt 6.4” True color TFT LCD display, keyboard and rotary encoder, fully control without laptop
Advance software testing modules for optional
3-Years guarantee of free repair and life-long maintenance
Free software upgrade
Feature Of K68i Protection Relay Test Set
Basic functions:
|
● |
DC test |
|
● |
AC test |
|
● |
Distance relay test |
|
● |
Harmonic test |
|
● |
Frequency test |
|
● |
8 pairs binary inputs |
|
● |
4 pairs binary outputs |
|
|
|
Type of relays can be tested:
|
Items |
ANSI® No. |
|
Distance protection relay |
21 |
|
Synchronising or synchronism-check relays |
25 |
|
Undervoltage relays |
27 |
|
Directional Power relays |
32 |
|
Undercurrent or underpower relays |
37 |
|
Negative sequence overcurrent relays |
46 |
|
Overcurrent/ground fault relays |
50 |
|
Inverse time overcurrent/ground fault relays |
51 |
|
Power factor relays |
55 |
|
Overvoltage relays |
59 |
|
Voltage or current balance relays |
60 |
|
Directional overcurrent relays |
67 |
|
Directional ground fault relays |
67N |
|
DC overcurrent relays |
76 |
|
Phase-angle measuring or out-of-step protection relays |
78 |
|
Automatic reclosing devices |
79 |
|
Frequency relays |
81 |
|
Motor overload protection relays |
86 |
|
Differential protection relays |
87 |
|
Directional voltage relays |
91 |
|
Voltage and power directional relays |
92 |
(KINGSINE PRODUCTS EXHIBITION IN US)
Specification Of K68i Protection Relay Test Set
|
Aux. DC Voltage Source (Battery simulator) |
|
|
Range |
0~300V @ 120W max |
|
Accuracy |
0.5%Rg Guar. |
|
Binary Input |
|
|
Quantity |
8pairs |
|
Type |
wet/dry, up to 300Vdc max input |
|
Time resolution |
100us |
|
Sampling Rate |
10KHz |
|
Debounce time |
0~25ms (Software Controlled) |
|
Time range |
999.999s |
|
Time errors |
±1ms @ ≤1s, ±0.1% @ >1s |
|
Galvanic isolation |
Isolated as 1,2,3,4-8 pairs |
|
Binary Output (Relay Type) |
|
|
Quantity |
4pairs |
|
Type |
Potential free relay contacts, software controlled |
|
Break Capacity AC |
Vmax: 400Vac / Imax:4A / Pmax:1000VA |
|
Break Capacity DC |
Vmax: 300Vdc / Imax:4A / Pmax:300W |
Advantage Of K68i Protection Relay Test Set
Advance software functions (optional for selections):
● Differential test
● State sequence test
● Time characteristic test
● Advance distance test
● Synchronizer test
● Fault recurrence (fault play back)
Inquiry us for more details.
