12 Channel Protection Relay Testing,
KF86 Protection Relay Testing,

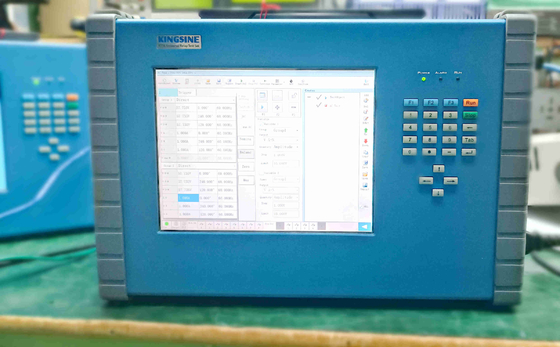

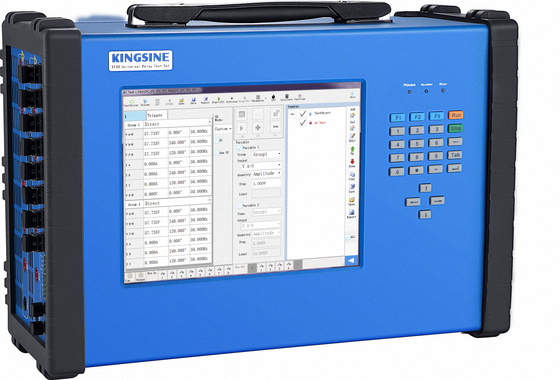

KF86 Universal Relay Test Set
(Recently shipped to the US of KF86 equipment, accessories and calibration certificate)
KINGSINE KF86 has light weight 10kg, very small size (390mm*256mm*140mm) for easy carry on flight journey.
6x20A, 6x300V analog output channels.
Compact 6-phase relay test set with high accuracy & full solution (complying IEC61850 sampled value and GOOSE), fully meet all the requirements for detection and debugging of IEC61850 IEDs, Merge Units, station control systems and traditional protection relays.
So far KINGSINE brand products have been successfully served clients across more than 70 countries over the world.
● 6x300V voltage, 6x20A current) and IEC61850 SMV messages simultaneously output;
● Built-in dual-core CPU industrial computer, built-in large-capacity SSD solid drive; operating system Embedded Windows 7; 9.7-inch true color LCD screen, 1024×768 resolution, touch screen operation. Can work offline or online;

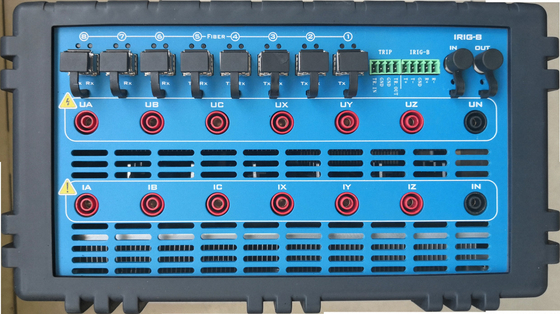

● Provide 8 pairs of LC optical ports, can transmission and receive 36 channels of IEC61850-9-1, IEC61850-9-2 frame format sample values; with optical power test function;
● Provide 6 ST output optical ports and 2 ST receive optical ports, which can output 6 sets of sampled value messages conforming to IEC60044-7/8 (FT3) format; can receive 2 sets of FT3 format of IEC60044-7/8 specification Sampled value message;
● Can subscribe/publish GOOSE information or output, receive switching, and realize closed-loop testing of protection;
● Simulate 12-channel low level output to test the protection of low level input;
● Start up to simulate the IED to actively release GOOSE, sampled value signals, to eliminate the reset process of the device under test caused by link interruption after the test is stopped;
● The optical port output is sampled or GOOSE can be freely defined; multiple different GOOSE control block information can be subscribed/published;
● Sample value channel function, the number of channels can be set freely, up to 36 channels can be configured;
● Automatically import SCL (SCD, ICD, CID, NPI) files to realize automatic configuration of sampled values and GOOSE information, and save sample values and GOOSE configuration information as a configuration file for testing;
● It can automatically detect optical digital signals from MU, protection device and intelligent operation box, and realize automatic configuration function of sampling value and GOOSE information;
● Can simulate abnormal conditions(loss, misorder, quality abnormality, message re-transmission, data anomaly, out of step, etc.);
● The channel quality of the output SV message can be set, and the simulation unit can be simulated and debug, set to invalid, set to run state, and can simulate double AD inconsistency and other tests;
● Built-in GPS/Beidou timing module with GPS, IRIG-B code synchronization time function;
● Full-featured software test module, AC, status sequence, recloser test, distance protection, overcurrent protection, inverse time overcurrent, zero sequence protection, ramping test, power direction, differential test, frequency test, synchronize test software modules;
|AC current source|
|Amplitude & Power||6×20A @ 300VA max each;
3×40A @ 520VA max each;
|Accuracy||±1mA @ <0.5A
<0.02%Rd+0.01Rg Typ. @ 0.5A~20A
<0.05%Rd+0.02Rg Guar. @ 0.5A~20A
|Range||Range I: 3A
Range II: 20A
|DC Offset||<3mA Typ./ <10mA Guar|
|Distortion||<0.025%Typ. / <0.07% Guar.|
|DC Current source|
|Amplitude & Power||6×10A @ 50W max|
|Accuracy||±5mA @ <1A
±0.2% @ ≥1A
|AC voltage source|
|Amplitude & Power||6×300V @ 65VA max each|
|Accuracy||±2mV @ <2V
<0.015%Rd+0.005Rg Typ. @ 2~300V
<0.04%Rd+0.01Rg Guar. @ 2~300V
|Range||Range I: 13V
Range II: 300V
|DC Offset||<10mV Typ./ <60mV Guar|
|Distortion||<0.015%Typ. / <0.05% Guar.|
|DC Voltage source|
|Amplitude & Power||6×150V @ 42W max
1×300V @ 85W max
|Accuracy||±10mV @ <5V
±0.2% @ ≥5V
Inquiry us for more details.
Q:1. What is the shipping method?
A: To be more efficient, we mostly use air freight. If you prefer other way of transportation, we can according to your request.
Q: 2.How long is the warranty period?
A:We provide 3-years guarantee of free repair and life-long maintenance.
Q: 3.Why do we offer a three-year warranty?
A:First of all,The quality goal of KINGSINE company is that no quality failure occurs within five years of customer use.
The second,KINGSINE has been engaged in the overseas market for 12 years.Up to now,about 3000 sets of equipment have been operating overseas,and the annual failure rate is less than 1%.
The third,Our products are modular design,If there is a fault,it can be remote fault diagnosis,and then express products’ parts to customer for quick repair.
Kingsine Electric Automation Co., Ltd. has been specializing in Research & Development, production and sales of Electric Testing & Measurement Instruments since 1999 foundation who is also honored as the High-tech enterprise certification and Software enterprise certificate recognized by China authority. With about high development speed every year, Kingsine win the Chinese top manufacturer for electric test equipmentin the domestic relay-tester market.China Guodian Corporation,State Grid Corporation of China,China Southern Power Grid Company Limited and many other national companies use our products.
With ISO 9001:2008 certified Quality Management with R&D, Production and Marketing, now Kingsine's products are approved by over 70 countries worldwide in many industries of electrical power, metallurgy, petrochemical, railway mining and relative scientific research institution as well as same trade of meter and protective relays factories, and getting the warm welcome from the world large Electricity & Energy Exhibition such as POWER-GEN International of USA, Middle East Electricity of Dubai, HANNOVER MESSE of Germany and FIEE Electrical of Brazil. Its Relay-Tester is suitable working for many world famous relay protection devices such as ABB, SIMENS, ALSTOM, TOSHIBA, SCHNEIDER, AREVA, SEL, GE etc and Kingsine also give the full service with his distribution net from many countries partners of European, Asia and Middle East.
