| Brand Name: | KINGSINE |
| Model Number: | K3163i |
| MOQ: | 1set |
| Price: | negotiation |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T |

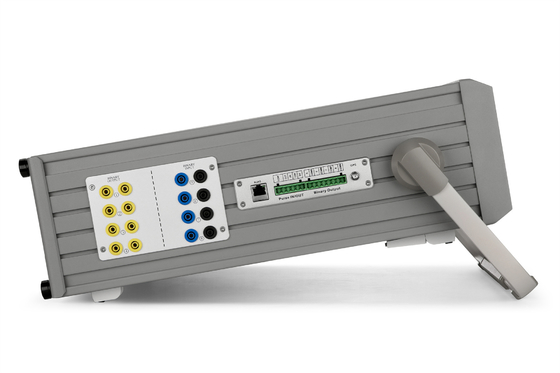

Kingsine K3163i has Integrated design, weight < 17.5kg;
High Power and Accuracy with 6x35A & 4x310V analog outputs;
Complying IEC61850 Sampling Value & GOOSE;
The ever-expanding test library templates;
Optional advance functions like energy meter and transducer calibration etc.
| ● | Universal Relay Test Applications |
| ● | 10 Channels (6x35A & 4x310V) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics. |
| ● | 13 Low-level channels outputs up to 8Vac/10Vdc max. |
| ● | 100/1000Mbit Fiber port for SMV and GOOSE simulations |
| ● | Variable battery simulator, DC 0-350V, 140Watts max. |
| ● | Transient play back up to 3KHz |
| ● | Fully function KRT software testing modules |
| ● | Graphical test modules and templates for testing of various relays |
| ● | Quick relay testing facility in Manual mode |
| ● | Shot/Search/Check, Point & Click testing |
| ● | RIO/XRIO import & export facility |
| ● | Switch on to fault test(SOTF) |
| ● | Power system model for dynamic testing |
| ● | Online Vector display |
| ● | Automatic test results assume |
| ● | Automatic test report creation |
| ● | Inbuilt GPS and IRIG-B sync end-to-end testing |
| ● | Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection |
| ● | 3-Years guarantee of free repair and life-long maintenance |
| ● | Lightweight, <18Kg |
| ● | Free software upgrade |
| Voltage Outputs | ||
| Output Range & Power | 4×310 V ac (L-N) | 124 VA max each |
| 3×350 V dc (L-N) | 140 W max each | |
| Accuracy | ±2mV @ <2V ac <0.015%Rd+0.005Rg Typ. @ 2~310V ac <0.04%Rd+0.01Rg Guar. @ 2~310V ac |
|
| ±10mV @ <5V dc ±0.5% @ ≥5V dc |
||
| Voltage Range | Range I : 30V | |
| Range II : 310V | ||
| Automatic Range | ||
| DC Offset | <20mV Typ./ <100mV Guar | |
| Resolution | 1mV | |
| Distortion | <0.015%Typ. / <0.05% Guar. | |
| Current Outputs | ||
| Output Range & Power | 6×35A ac (L-N) | 480 VA max each |
| 3×70A ac (2L-N) | 850 VA max each | |
| 1×100A ac (6L-N) | 1200 VA max | |
| 3×20A dc (L-N) | 300W max each | |
| Accuracy | ±1mA @ <0.5A ac <0.02%Rd+0.01Rg Typ. @ 0.5A~35A ac <0.05%Rd+0.02Rg Guar. @ 0.5A~35A ac |
|
| ±5mA @ <1A dc ±0.5% @ ≥1A dc |
||
| Current Range | Range I: 3A | |
| Range II: 35A | ||
| Automatic Range | ||
| DC Offset | <3mA Typ./ <10mA Guar | |
| Resolution | 1mA | |
| Distortion | <0.025%Typ. / <0.07% Guar. | |
| Low-Level Output | ||
| Quantity | 13 Channels, 16 pin combination female socket | |
| Voltage Outputs Range | AC 0~8V, DC 0~10V | |
| Current Outputs Range | Nominal 2mA, 10mA max transient | |
| Output Power | ≥0.5VA | |
| Accuracy | (0.01~0.8 Vrms):<0.05% Typ. / <0.1% Guar. (0.8~8 Vrms): <0.02% Typ. / <0.05% Guar. |
|
| Resolution | 0.25mV | |
| Distortion (THD%) | <0.05% Typ. / <0.1% Guar. | |
| Frequency Range | 0~3000KHz | |
| DC Offset | <0.15mV Typ. / <1.5mV Guar. | |
IEC61850 Fiber & GOOSE Ethernet Ports (Optional Function)
Fiber Ports:2 x 100Base-FX Full Duplex, LC type
(Optional to 10/100Mbit, Ethernet RJ45 type)
Fiber Type:62.5/125um (Multiple optical fiber, Orange Red)
Wavelength:1310nm
Transmit Distance>1Km
Indicator :Spd Green(light): Valid connection
Link/Act Yellow(Blinking): Data exchanging
Note:Hardware is ready, to be active
