K3166i Protective Relay Tester / Protection Relay Test Equipment

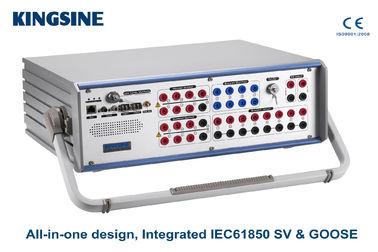

 K3166i Universal Relay Test Set



                 (All-in-one design,complying IEC61850 SV & GOOSE)



Output Current: 6×35A@450VA max.



                                3×70A@850VA max.



  Output Voltage: 7×310V@90VA max.




Features





All-in-One design, Integrated IEC61850 SV & GOOSE, 6I+7V analog channels output, Inbuilt GPS and IRIG-B, and other advance functions.



1. Complied IEC61850-9-1, IEC61850-9-2, IEC60044-7/8, etc.



2. 100/1000Mbit Fiber ports for SMV and GOOSE simulations.



3. 6×35A & 7×310V independent high burden output channels.



4. 13 channels independent low-level signal outputs.



5. AC/DC measurement (8 channels inputs,class 0.1,0-600V/0-5A,auto range).



6. Transducer calibartion (class 0.02).



7. Energy meter calibration ( Mechanical & Electronic meters ).



8. Analog and Binary Transient Record.



9. Transient play back up to 3KHZ.



10. Light weight ＜18kg



11. Fully function KRT software testing modules.



12. 3-Years guarantee of free repair and life-long maintenance.



13. Free software upgrade.





Ordering Ref.



Model	Current Outputs			Voltage Outputs
K3166i	6×35A@450VA max / 3×70A@850VA max			7×310V@90VA max
K3163i	6×35A@450VA max / 3×70A@850VA max			4×310V@124VA max
K3130i	3×35A@450VA max			4×310V@124VA max
K3166	6×35A@450VA max / 3×70A@850VA max			7×130V@75VA max
K3163	6×35A@450VA max / 3×70A@850VA max			4×130V@75VA max
K3130	3×35A@450VA max			4×130V@75VA max





Application





Testing Items                                                                                     ANSI® No.



 IEC61850 numerical IEDs relay & merge unit                                              --



 Distance protection relay                                                                            21



 Synchronising or synchronism-check relays                                               25



 Undervoltage relays                                                                                    27



 Directional Power relays                                                                             32



 Undercurrent or underpower relays                                                            37



 Negative sequence overcurrent relays                                                       46



 Overcurrent/ground fault relays                                                                 50



 Inverse time overcurrent/ground fault relays                                              51



 Power factor relays                                                                                    55



 Overvoltage relays                                                                                     59



 Voltage or current balance relays                                                              60



 Directional overcurrent relays                                                                    67



 Directional ground fault relays                                                                   67N



 DC overcurrent relays                                                                                76



 Phase-angle measuring or out-of-step protection relays                            78



 Automatic reclosing devices                                                                       79



 Frequency relays                                                                                       81



 Motor overload protection relays                                                                86



 Differential protection relays                                                                       87



 Directional voltage relays                                                                           91



 Voltage and power directional relays                                                         92



 Tripping relays                                                                                           94



 Voltage regulating relays                                                                            --



 Overimpedance relays, Z>                                                                          --



 Underimpedance relays, Z                                                                          --



 Time-delay relays                                                                                       --







Characteristic





1. 13 Channels (6×35A & 7×310V) outputs, each output channels are independent and simultaneous.



2. Variable battery simulator, DC 0-350V, 140Watts max.



3. 13 Low-level channels outputs up to 8Vac/10Vdc max.



4. 0-600V / 0-5A AC/DC measurement in 0.1 class.



5. Graphical test modules and templates for testing of various relays.



6. Quick relay testing facility in Manual mode.



7. Shot/Search/Check, Point & Click testing.



8. RIO/XRIO import & export facility.



9. Switch on to fault test(SOTF).



10. Power system model for dynamic testing.



11. Inbuilt GPS and IRIG-B sync end-to-end testing.



12. Online Vector display.



13. Automatic test results assume.



14. Automatic test report creation.



15. Anti-clipping detect,wrong wiring connect alarm and self-protect, overload and overheat protection.





Parameter





Voltage Outputs
Output Range & Power			7×310V ac (L-N)		90VA max each
			3×620V ac (L-L)		180VA max each
			3×350V dc (L-N)		140W max each
Accuracy			AC:＜0.03%Rd + 0.01Rg Typ. / ＜0.07%Rd + 0.03Rg Guar.
			DC: ±10mV @＜5V,±0.5% @ ≥5V
Resolution			1mV
Distortion			＜0.05% Typ. / ＜0.1% Guar.
Current Outputs
Output Range & Power			6×35A ac(L-N)		450VA max each
			3×70A ac(2L-N)		850VA max each
			1×100A ac(6L-N)		1200VA max
			3×20A dc(L-N)		300W max each
Accuracy			AC:＜0.05%Rd + 0.02Rg Typ. / ＜0.15%Rd + 0.05Rg Guar.
			DC: ±5mA @＜1A,±0.5% @ ≥1A
Resolution			1mA
Distortion			＜0.05%Typ. / ＜0.1% Guar.
13 Low-Level Channel Outputs
Quantity			13 Channels, 16 pin aviation socket
Voltage outputs range			AC 0-8V, DC 0-10V
Current outputs range			Nominal 2mA, 10mA max transient
Output Power			≥0.5VA
Accuracy			(0.01~0.8 Vrms):＜0.05% Typ. / ＜0.1% Guar.
			(0.8~8 Vrms):＜0.02% Typ. / ＜0.05% Guar.
Resolution			0.25mV
Distortion(THD%)			＜0.05%Typ. / ＜0.1% Guar.
Frequency & Phase Angle
Frequency Range			DC~1KHZ, 3KHZ transient
Frequency Accuracy			±1ppm
Frequency Resolution			0.001Hz
Phase Range			-360°~360°
Phase Accuracy			＜0.05°Typ. / ＜0.1° Guar. 50/60Hz
Phase Resolution			0.001°
IEC61850 Fiber & GOOSE Ethernet Ports (Optional Function)
Fiber Ports			2×100Base-FX Full Duplex,LC type  (Optional to 10/100Mbit, Ethernet RJ45 type)
Fiber Type			62.5/125um (Multiple optical fiber, Orange Red)
Wavelength			1310nm
Transmit Distance			＞1Km
Indicator			Spd Green(light):Valid connection  Link/Act Yellow(Blinking): Data exchanging
Note: All hardware of this module are ready for active.
Aux. DC Voltage Source(Battery simulator)
Range			0~350V @ 140W max
Accuracy			0.5%Rg Guar.
Binary Input
Quantity			8 pairs
Type			wet/dry, measurement
Threshold			10~600Vdc or potential free, Programmable
Time resolution			100us
Debounce time			0~25ms(Software Controlled)
Time range			Infinite
Time errors			±1ms @ 0.001~1s, ±0.1% @＞1s
Galvanic isolation			4 isolated with each 2 pairs
Binary Output(Relay Type)
Quantity			4pairs
Type			Potential free relay contacts,software controlled
Break Capacity AC			Vmax: 400Vac / Imax:8A / Pmax:2500VA
Break Capacity DC			Vmax: 300Vdc / Imax:5A / Pmax:150W
Binary Output (Semiconductor Type)
Quantity			4pairs
Type			Open-collector, 14 pin Aviation socket
Break Capacity DC			5~15Vdc / 5mA, 10mA max  AC not permit
Response time			100us
Synchronization
Synchronization Mode			GPS, SMA type antenna connector / IRIG-B / FT3 IEEE1588
Power supply & Environment
Nominal Input Voltage			100~240Vac
Permissible Input Voltage			85~264Vac, 125~350VDC
Nominal Frequency			50/60Hz
Permissible Frequency			45Hz~65Hz
Power Consumption			1500 VA max
Connection Type			Standard AC socket 60320
Operating Temperature			-10℃~55℃
Storage Temperature			-20℃~70℃
Humidity			<95%RH, non-condensing
Others
PC Connection			RJ45 Ethernet, 10/100/1000M
Grounding Terminal			4mm banana socket
Weight			18Kg
Dimensions(W×D×H)			468×375×164(mm)







Optional Modules





 DC Measurement Input (Transducer calibrator)



◆ Voltage input



     Range: 0~±10V dc



     Max Input: ±11V dc



     Accuracy: ＜0.02% rg Typ. / ＜0.05% rg Guar.



     Input Impedance: 1M ohm



◆ Current Input



     Range: 0~±1mA / 1~20mA, auto range



     Max Input: 600mA



     Accuracy: ＜0.02% rg Typ. / ＜0.05% rg Guar.



     Input Impedance: 15 ohm





 AC / DC Measurement Input( Standard meter )



◆  Input Quantity: 8 channels (blend with binary input pairs).



◆  Voltage rang: 0~600Vrms (Rg: 0.1V,1V,10V,60V,600V).



◆  Voltage accuracy: ＜0.1% Rg



◆  Current range: 0~5Arms (Clamp input, 30Arms optional).



◆  Current accuracy: ＜0.1% Rg.



◆  Sample rate: 10KHz.



◆  Input impedance: 600KΩ



◆  Frequency range: 45~65Hz, Accuracy＜0.01Hz.



◆  Phase accuracy: 0~360°,＜0.2° Typ.





  Transient Recorder



◆  Input Quantity: 8 input channels (blend with binary input pairs).



◆  Recorder time: Max 50 Sec.





 Energy Meter Calibration



◆  Sensor Usage: Mechanical meters / Electronic meters.



◆  Sensor Output: High level : ＞4.5V, Low level: ＜0.2V.



◆  Pulse Input: 1 pulse input port.



◆  Pulse Range: 500KHz pulse input Max.



◆  Pulse Output: 1 Transistor output, Open-collector, 5-15Vdc/5mA.
