Overview

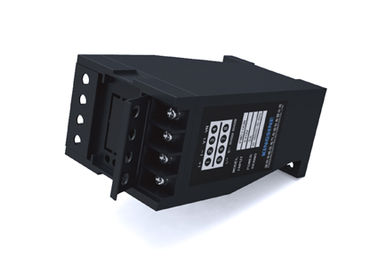

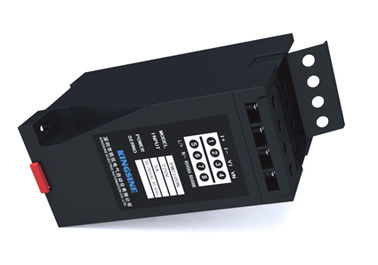

 PMC100N single phase network power meter is a multifunctional network meter without LCD operation panel. It adopts low power dissipation microprocessor, can measuring complete power parameter, energy measurement. It has RS-485 communication port and could be easily integrated to any intelligent power distribution system. PMC180N has the practical function, easy use, easy maintenance. It can use to monitor and control of the on-site equipment, supply the measuring & testing support to the power application specialist, supply the data base to the SCADA and Smart Grid, provide scientific basis for intelligent energy management.

Function Features

Function Features



PMC100Z

PMC100C

PMC100P

PMC100F

PMC100U

PMC100I

PMC100N

Instantaneous real virtual value















current







voltage







frequency









active power









reactive power











power factor









Energy















active energy











Communication















RS485 /MODBUS protocol

Display















LED display



other















2 channel DI



2 channel DO



1 channel AO :4-20mA



2 channel limits alarm

support program online upgrade



Technical parameter

Electrical Characteristics

Measurement Type



single phase AC system



Sampling rate per cycle: 64 times

Data refresh rate

1S

Measurement Accuracy



Current

0.2%

Voltage

0.2%

Power

0.5%

Frequency

0.05Hz

Active Energy

1.0%

Input voltage characteristics



Measuring voltage

0~600 V (Direct Access)

Allowed overload

1.2 times / continuous



Input impedance

1.8MΩ

Input current characteristic

Measuring current

5A or 1A  (Via CT Connect)

Allowed overload

 1.2 times / continuous

Input impedance

<0.1Ω

Binary input

Working voltage

12~24 VDC external power supply)

Input impedance

12KΩ

Isolation voltage

2KV

Relay output

Node Type



Mechanical shock

Node capacity

220 VAC/5A, 30 VDC/5A

4-20mA AC input

Open circuit voltage



5VDC

overload capacity

≤200Ω

Isolation voltage

2KV



AC

85~265 VAC/45-65Hz

DC

100~300 VDC

Power dissipation

< 2.5W

Mechanical properties



Weight

0.3kg

IP protection grade

IP52

Size

75 X 55 X120 mm

Operating temperature

-25~70℃

Storage Temperature

-40~85℃

Relative Humidity

5% - 90%RH,  No condensation

EMC

Electrostatic discharge interference

IEC 61000-4-2, Level 4

Group of anti-fast transient pulse

IEC 61000-4-4, Level 4

Anti-impact



IEC 61000-4-5, Level 3

Anti-frequency magnetic field

IEC 61000-4-8, Level 3

Electrical insulation performance

Insulation resistance

GB/T13729, >50MΩ

Frequency withstand voltage

GB/T13729, AC 2KV 50Hz /1min

Impulse voltage

GB/T13729, 5KV, 1.2/50us
