Digital Multifunctional Power Meter , Three-Phase PMC180

Digital Multifunctional Power Meter , Three-Phase PMC180
Digital Multifunctional Power Meter , Three-Phase PMC180

Large Image :  Digital Multifunctional Power Meter , Three-Phase PMC180

Product Details:
Place of Origin: China
Brand Name: Kingsine
Certification: ISO9001,CE
Model Number: PMC180
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Delivery Time: 15 working days
Payment Terms: T/T in advance ,L/C
Supply Ability: 5000PCS/Month
Detailed Product Description
High Light:

power quality in electrical systems

,

portable power quality PMC180 nalyzer



Digital Multifunctional Power Meter , Three-Phase PMC180



Single / Three-Phase AC System
Big LCD display with Blue Backlight
Wide temperature range
Power Quality Analysis

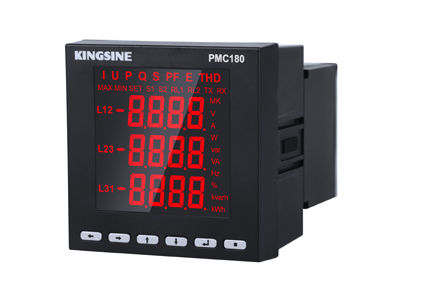

  PMC180 three-phase digital power meter

  • Complete power parameter measurement, energy measurement, 31 order voltage / current harmonic analysis.

  • Threshold Crossing Alert for power parameter, online monitoring, relay relevance alarm output.

  • Support 2-channel DI/DO, can configure transducer output.

  • Support MODBUS-RTU, RS485 communication.


Overview


PMC180 series three-phase digital power meter adopts customized, modularized, high brightness LED display, very beautiful and grand; use low-power microprocessor as core, to achieve all-electric parameter measurement and energy metering. Can optional configure various binary, relay, analog output interface to achieve user's various needs; integrates RS-485 communication ports, can easily fulfill the integration of various intelligent distribution System. The product function is practical, easy to use and maintenance. Can be used in on-site equipment monitoring and control , provide measure support for electric application experts, provide data basis for SCADA and Smart Grid, provide decision-making basis for effective intelligent energy management.



Function Features



Function Features

PMC180Z

PMC180C

PMC180P

PMC180U

PMC180I

Instantaneous real virtual value











Current

Single phase & neutral line





Voltage

Line/line & Phase/Line





Frequency









Active power

Three-phase & single phase







Reactive power

Three-phase & single phase









power factor

Three-phase & single phase







Energy











Active energy









Reactive energy









Power Quality











Harmonic distortion

Current & voltage









31 order harmonic analysis

Voltage & current









Communication











RS485 /MODBUS protocol

Display











LED display

Other











2-channel DI

*2-channel DO

*1 channel AO:4-20Ma

2-channel limits alarm

Support program online upgrade



Technical parameter



Electrical Characteristics

Measurement Type

Three-phase three-wire AC system

Three-phase four-wire AC system



 Sampling rate: 64 times per cysle

Data refresh rate

1S

Measurement Accuracy

Current

0.2%

Voltage

0.2%

Power

0.5%

Frequency

0.05Hz

Active Energy

1.0%

Reactive Energy

2.0%

AO

1%

Input voltage characteristics

Measuring voltage

3 X 220/380V(connected directly)

3 X 57.7/100V(connected by CT)

Allowed overload

1.2 times / continuous

Input impedance

1.8MΩ

Input current characteristic

Measuring current

5A or 1A (connected by CT)

Allowed overload

1.2 times / continuous

Input impedance

<0.1Ω

Binary input

Working voltage

12~24 VDC (external power supply)

Input impedance

12KΩ

Isolation voltage

2KV

Relay output

Node Type

Mechanical shock

Node capacity

220 VAC/5A, 30 VDC/5A

4-20mA

DC Output

Open circuit voltage

5VDC

Overload capacity

≤200Ω

Isolation voltage

2KV

Working power supply

AC

85~265 VAC/45-65Hz

DC

100~300 VDC

Power dissipation

< 3W

Mechanical properties

Weight

0.5kg

IP protection grade

panel IP52,  body IP30

Size

96 X 96 X 72 mm

Operating temperature

-25~70℃

Storage Temperature

-40~85℃

Relative Humidity

5% - 90%RH, No condensation

EMC

Electrostatic discharge interference

IEC 61000-4-2, Level 4

Group of anti-fast transient pulse

IEC 61000-4-4, Level 4

Anti-impact

IEC 61000-4-5, Level 3

Anti-frequency magnetic field

IEC 61000-4-8, Level 3

Electrical insulation performance

Insulation resistance

GB/T13729, >50MΩ

Frequency withstand voltage

GB/T13729, AC 2KV 50Hz /1min

Impulse voltage

GB/T13729, 5KV, 1.2/50us



Contact Details
Kingsine Electric Automation Co., Ltd.

Contact Person: Amy

Tel: +8613603051120

Send your inquiry directly to us (0 / 3000)
