| Brand Name: | KINGSINE |
| Model Number: | PMC72L |
| MOQ: | 10PCS |
| Delivery Time: | 15DAYS |
| Payment Terms: | T/T |

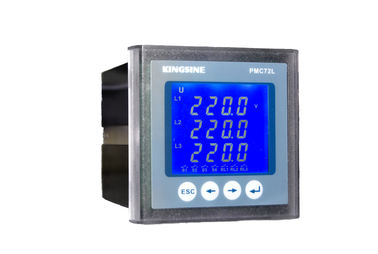

Three-phase Multifunctional Power Meter / Monitoring Meter PMC72
Big LCD display with Blue Backlight
Wide temperature range
Wide angle display
Function Features
Overview
PMC72 series three-phase electric monitoring meter adopts Segment type LCD screen,beautiful and grand,high contrast; With high-speed processor as the core, measurement of electric parameters using 22 AD, electric energy metering, wide dynamic range, high accuracy. Can optional configure various binary,relay,RS-485 communication module, can easily fulfill the integration of various intelligent distribution system.
Series Model
Applications
Function Features
|
Product Model |
PMC72L-Z PMC72-Z |
PMC72L-C PMC72-C |
PMC72L-P PMC72-P |
PMC72L-U PMC72-U |
PMC72L-I PMC72-I |
|
Instantaneous real virtual value |
|
|
|
|
|
|
Current Single phase & neutral line |
◆ |
|
◆ |
|
◆ |
|
Voltage Line/line & Phase/line |
◆ |
|
◆ |
◆ |
|
|
Frequency |
◆ |
|
|
|
|
|
Active power 3-phase & Single phase |
◆ |
|
◆ |
|
|
|
Reactive power 3-phase & Single phase |
◆ |
|
|
|
|
|
Power factor 3-phase & Single phase |
◆ |
◆ |
|
|
|
|
Energy |
|
|
|
|
|
|
Active energy 1 channel pulse output |
◆ |
|
|
|
|
|
Reactive energy |
◆ |
|
|
|
|
|
Communication |
|
|
|
|
|
|
MODBUS-RTU protocol |
◆ |
◆ |
◆ |
◆ |
◆ |
|
Display |
|
|
|
|
|
|
LCD or LED |
◆ |
◆ |
◆ |
◆ |
◆ |
|
Other |
|
|
|
|
|
|
Support program online upgrade |
◆ |
◆ |
◆ |
◆ |
◆ |
|
Optional function |
|
|
|
|
|
|
1 channel RS-485 |
◆ |
◆ |
◆ |
◆ |
◆ |
|
2-channel DI |
◆ |
◆ |
◆ |
◆ |
◆ |
|
2-channel DO |
◆ |
◆ |
◆ |
◆ |
◆ |
|
2-channel limits alarm |
◆ |
|
◆ |
◆ |
◆ |
Technical Parameter
|
Electrical Characteristics |
||
|
Measurement type |
Three-phase three-wire AC system Three-phase four-wire AC system |
|
|
|
Sampling rate: 64 times per cycle |
|
|
Data refresh rate |
1S |
|
|
Measurement Accuracy |
Current |
0.5% |
|
Voltage |
0.5% |
|
|
Power |
0.5% |
|
|
Frequency |
0.05Hz |
|
|
Active Energy |
1.0% |
|
|
Reactive Energy |
2.0% |
|
|
AO |
1% |
|
|
Input voltage characteristics
|
Measuring voltage |
3 X 220/380V(connected directly) 3 X 57.7/100V(connected by CT) |
|
Allowed load |
1.2 times / continuous |
|
|
Input impedance |
1.8MΩ |
|
|
Input current characteristic |
Measuring current |
5A or 1A (connected by CT) |
|
Allowed load |
1.2 times / continuous |
|
|
Input impedance |
<0.1Ω |
|
|
Binary input |
Working voltage |
Passive dry contact(built-in+15VDC power supply) |
|
Input impedance |
5KΩ |
|
|
Isolation voltage |
2KV |
|
|
Relay output |
Node type |
Mechanical shock |
|
Node capacity |
220 VAC/5A 30 VDC/5A |
|
|
Working power supply |
AC |
85~265 VAC/45-65Hz |
|
DC |
100~300 VDC |
|
|
Power dissipation |
< 3W |
|
|
Mechanical Properties |
||
|
Weight |
0.5kg |
|
|
IP protection grade |
Panel IP52, body IP30 |
|
|
Size |
72X 72 X 95mm |
|
|
Operating temperature |
-10~55℃ |
|
|
Storage temperature |
-20~70℃ |
|
|
Relative humidity |
5% - 90%RH,No condensation |
|
|
EMC |
||
|
Electrostatic discharge interference |
IEC 61000-4-2,Level 4 |
|
|
Group of anti-fast transient pulse |
IEC 61000-4-4,Level 4 |
|
|
Anti-impact |
IEC 61000-4-5,Level 3 |
|
|
Anti-frequency magnetic field |
IEC 61000-4-8,Level 3 |
|
|
Electrical insulation performance |
||
|
Insulation resistance |
GB/T13729,>50MΩ |
|
|
Frequency withstand voltage |
GB/T13729,AC 2KV 50Hz /1min |
|
|
Impulse voltage |
GB/T13729,5KV,1.2/50us |
|
Selection Guide
|
SPECIFICATION: PMC72A-B-C-D-E-F |
|
|
A Model specification: |
|
|
PMCL |
LCD Display |
|
PMC72 |
Digital Display |
|
B Means type |
|
|
I |
3-Phase current meter |
|
U |
3-Phase voltage meter |
|
P |
3-Phase power meter |
|
C |
3-Phase power factor meter |
|
Z |
3-Phase power monitoring meter |
|
C Means Rated measurement voltage, current |
|
|
1 |
57.7/100V, 5A |
|
2 |
57.7/100V, 1A |
|
3 |
220/380V, 5A |
|
4 |
220/380V, 1A |
|
D System frequency |
|
|
1 |
50Hz |
|
2 |
60Hz |
|
E Working power supply |
|
|
1 |
100~300VDC, 85~265VAC/45~65Hz |
|
F Optional function |
|
|
S |
2-Channel Binary Input |
|
R |
2-Channel Relay Output |
|
C |
1 Channel RS485 |
Example: order model is: PMC72L-I-3-1-1-SR
It means PMC72L 3-phase LED display current meter has rated measuring is 220/380V 5A,system frequency 50Hz,power supply is 85~265VAC/45~65Hz,option is 2-channel binary input and 2-channel relay output.
|
|
