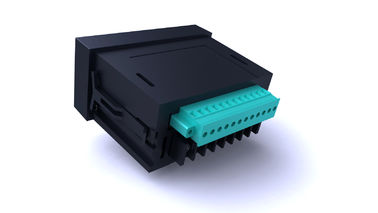

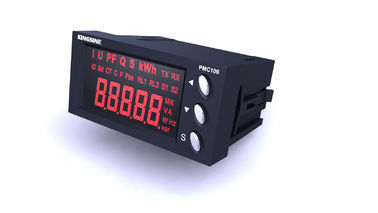

Digital Mutifunctional Power Meter , 2 Channel DI / DO PMC100

Digital Mutifunctional Power Meter , 2 Channel DI / DO PMC100
Digital Mutifunctional Power Meter , 2 Channel DI / DO PMC100 Digital Mutifunctional Power Meter , 2 Channel DI / DO PMC100

Large Image :  Digital Mutifunctional Power Meter , 2 Channel DI / DO PMC100

Product Details:
Place of Origin: China
Brand Name: Kingsine
Certification: ISO9001,CE
Model Number: PMC100
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Delivery Time: 15 working days
Payment Terms: T/T in advance ,L/C
Supply Ability: 5000PCS/Month
Detailed Product Description
High Light:

2 Channel DI Digital Mutifunctional Power Meter

,

DO PMC100 Digital Mutifunctional Power Meter



Digital Mutifunctional Power Meter , 2-Channel DI / DO PMC100



Single phase electric parameter measurment and energy metering

On-line monitoring of electric parameter limit alarm, relay relevance alarm output

Support 2 channel DI/DO, can configure transducer output

Support MODBUS-RTU, RS485 communication



Overview


PMC100 series single phase digital power meter adopts customized, modularized, high brightness LED display, very beautiful and grand; use low-power microprocessor as core, to achieve all-electric parameter measurement and energy metering. Can optional configure various binary, relay, analog output interface to achieve user's various needs; integrates RS-485 communication ports, can easily fulfill the integration of various intelligent distribution System. The product function is practical, easy to use and maintenance. Can be used in on-site equipment monitoring and control , provide measure support for electric application experts, provide data basis for SCADA and Smart Grid, provide decision-making basis for effective intelligent energy management.



Function Features



Function Features



PMC100Z

PMC100C

PMC100P

PMC100F

PMC100U

PMC100I

PMC100N

Instantaneous real virtual value















Current







voltage







frequency









active power









reactive power











power factor









Energy















active energy











Communication















RS485 /MODBUS protocol

Display















LED display



other















2-channel DI



2-channel DO



1 channel AO :4-20mA



2-channel limits alarm

Support program online upgrade



Technical Parameter

Electrical Characteristics

Measurement Type

Single phase AC system



Sampling rate per cycle: 64 times

Data refresh rate

1S

Measurement Accuracy

Current

0.5%

Voltage

0.5%

Power

0.5%

Frequency

0.05Hz

Active Energy

1.0%

AO

1%

Input voltage characteristics

Measuring voltage

0~600 V (Direct Access)

Allowed overload

1.2 times / continuous

Input impedance

1.8MΩ

Input current characteristic

Measuring current

5A or 1A  (Via CT Connect)

Allowed overload

1.2 times / continuous

Input impedance

<0.1Ω

Binary input

Working voltage

12~24 VDC or 220VAC(external power supply)

Input impedance

12KΩ or 120KΩ

Isolation voltage

2KV

Relay output

Node Type

Mechanical shock

Node capacity

220 VAC/5A, 30 VDC/5A

4-20mA DC Output

Open circuit voltage

15VDC

Overload capacity

≤500Ω

Isolation voltage

2KV

 Working power supply

AC

85~265 VAC/45-65Hz

DC

100~300 VDC

Power dissipation

<2.5W

Mechanical properties

Weight

0.3kg

IP protection grade

panel IP52,  body IP30

Size

96 X 48 X 95.5 mm

Operating temperature

-40~70℃

Storage Temperature

-50~85℃

Relative Humidity

5% - 90%RH, No condensation

EMC

Electrostatic discharge interference

IEC 61000-4-2, Level 4

Group of anti-fast transient pulse

IEC 61000-4-4, Level 4

Anti-impact

IEC 61000-4-5, Level 3

Anti-frequency magnetic field

IEC 61000-4-8, Level 3

Electrical insulation performance

Insulation resistance

GB/T13729, >50MΩ

Frequency withstand voltage

GB/T13729, AC 2KV 50Hz /1min

Impulse voltage

GB/T13729, 5KV, 1.2/50us
