| Brand Name: | Kingsine |
| Model Number: | KF900 |
| MOQ: | 1 set |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T in advance ,L/C |

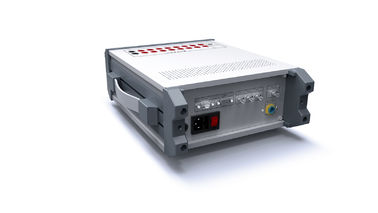

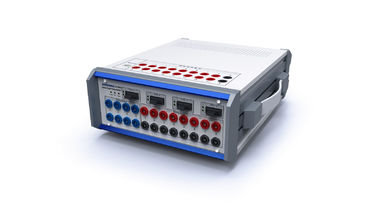

Optical Digital Relay Test System , 50Hz / 220V / 850nm KF900
1.Easy test
2.operation menu, Simple operation
3.IEC60044-7/8 standard
4.Wave Length:850nm
* With four fiber Ethernet interfaces and 3-way FT3 dedicated output interface
* In accordance with IEC61850-9-1 or IEC61850-9-2 frame format and send samples FT3 frame format or publish / subscribe GOOSE messages,
*The output sample value or GOOSE can be freely defined,
* Has 12 channels of analog output of weak signal, to achieve a variety of protection relay, monitoring and control devices, intelligent operation box testing.
Function Features
Provide fully test solutions to various IEC61850 relay protective devices & automation devices for all power users.
Provide 4 pairs of 100Base-FX optical interface, 3(FT3)ST optical out, support EC61850-9-1, EC61850-9-2, EC6004-7/8(FT3)and Goose optical digital message output test
Conventional analog binary input procession is compatible, providing 8 pairs analog binary input & 4 pairs binary output
Provide 1 RG-B/PPS interface, can access RG-B or PPS time signal which synchronize with GPS synchronous clock.
Technical Parameter
|
Binary Input
|
|
|
No.
|
8 pairs |
|
Input Characteristic |
0V~250V(DC) or no contanct (identified automatically) |
|
sample Frequency |
10kHz |
|
Time Resolution |
100μs |
|
Max measuring time |
1.50×105 s |
|
Timing Error |
±1ms (0.001s～1s) ±0.1%(1s～1.50×105 s) |
|
Set Range of Debounce Time( set by software) |
0ms～25ms |
|
Electric Isolation |
8 pairs input electric isolation |
|
Threshold Impedance Parameter(no contacts) |
5 kΩ…13kΩ
|
|
Sychronization Interface (GPS) |
|
|
|
KSGGPS satellite sychronization device)is optional; B code (RS485) sychronization interface |
|
Binary Output |
|
|
Ｎo. |
4 pairs |
|
Type |
no contants and no pole, controlled by software |
|
AC capacity |
Vmax:250V (DC)/Imax:3A |
|
DC capacity |
Vmax:250V (DC)/Imax:1A |
|
Power Supply |
|
|
Rated Voltage |
220V(AC) |
|
Allowed Voltage |
100V~240V(AC) |
|
Rated Frequency |
50Hz |
|
Allowed Frequency |
40~60Hz |
|
Current |
1A (max.) |
|
FT3 Interface |
|
|
Using Standard |
IEC60044-7/8 |
|
Terminal NO. |
3 pairs |
|
Interface Type |
ST |
|
Wave Length |
850nm |
|
Optical Fiber Type |
62.5/125μm, multi-mode |
|
Transmission Distance |
1km |
|
Ethernet Communication Interface |
|
|
Type |
10/100 Base-TX(10/100 Mbit, twisted pair/ auto crossed) |
|
Port No. |
1 pairs |
|
Interface Type |
RJ45 |
|
Cable Type |
5 pairs twisted pair |
|
State Indication |
LED green(light):effective connection LED yellow(flicker): data communication |
|
Fiber Optic Communication Interface |
|
|
Type |
100Base-FX(100Mbit, fiber optic, full-duplex) |
|
Port No. |
4 pairs |
|
Interface Type |
SC |
|
Cable Type |
62.5/125μm(multimode fiber orange) |
|
Wave Length |
1300nm |
|
Transmission Distance |
> 1Km |
|
State Indication |
SPD green(light):effective connection Link/AcT yellow(flicker): data communication |
|
Operational Environment |
|
|
Operational Temperature |
-10℃～+50℃ |
|
Storage& Transportation Temperature |
-20℃～+70℃ |
|
Humidity |
5～90% relative humidity, no condensation
|
