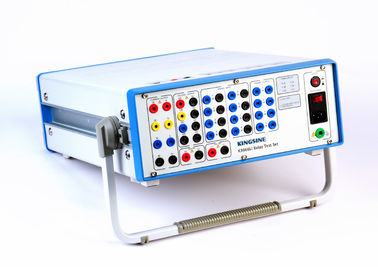

50Hz 220V Relay Test System , 50 / 51 Overcurrent Test K3066Li

50Hz 220V Relay Test System , 50 / 51 Overcurrent Test K3066Li
50Hz 220V Relay Test System , 50 / 51 Overcurrent Test K3066Li

Large Image :  50Hz 220V Relay Test System , 50 / 51 Overcurrent Test K3066Li

Product Details:
Place of Origin: China
Brand Name: Kingsine
Certification: ISO9001,CE
Model Number: K3066Li
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Delivery Time: 15 working days
Payment Terms: T/T in advance ,L/C
Supply Ability: 50 sets/ month
Detailed Product Description
High Light:

50Hz 220V Relay Test System

,

K3066Li electrical Relay Test System

,

Overcurrent Relay Test System

 50Hz / 220V Relay Test System , 50 / 51 Overcurrent Test K3066Li

Unique power switch and amplifier technology
4 pairs Binary output
Power:2000VA
7 phase voltage(L-N) output



 Friendly PC software for easy operation!

K30 series relay tester is extremely design for overseas user, with Friendly PC software as your need, unique features and functions helps you all the way!

1. Unique self-protection system assure the powerful protection when instrument is operating, automatic stop the output when the network is abnormal ;
2. Unique power switch and amplifier technology, so the output precision and power efficiency and factor are increased, which conforms to international tendency of energy save and environmental protection;
3. With alarm function of housing grounding testing and external voltage input, to guaranty personal security;
4. Two in one of meter and source, with function of both internal and external testing, self-calibration, oscillograph, and the duration of each oscillograph reaches 50S (optional function);
5. Offer independent Aux. DC to tested devices, 0 ~ 300V/0.6A (Poleless and adjustable);
6. Function of transducer and energy meter testing (optional function);
7. Testing interface offer unique output monitoring function and Pre-curve-tracing function, helps more on the spot analysis;

 Technical Data of K3066Li



Voltage generators

Setting

Range

7-phase AC (L-N)

7 x 0 ... 300 V

2-phase AC (L-L)

2 x 0 ... 600 V

Power

7-phase AC (L-N)

7 x 110VA,  at 0 ... 300 V

2-phase AC (L-L)

2 x 220VA,  at 0 ... 600 V

Accuracy

<0.07% reading + 0.03% range guaranteed

at 0 ... 300 V

<0.02% reading + 0.01% range typical

at 0-300V

Resolution

1mV

Current generators

Setting

Range

6-phase AC (L-N)

6 x 0 ... 30 A

3-phase AC (2L-N)

3 x 0 ... 60 A (Group A II B)

1-phase AC (3L-N)

1 x 0 ... 180 A

Power

6-phase AC (L-N)

6x 450VA , at 0 ... 30A

3-phase AC (2L-N)

3x 600VA,  at 0 ... 60A (Group A II B)

1-phase AC (3L-N)

1 x 1500 VA,  at 0 ... 180A (Max.)

Accuracy

<0.07% reading + 0.06% range guaranteed at 0-30A

<0.02% reading + 0.02% range typical at 0-30A

Resolution

1mA

Generators,  general

Frequency

Range

0 ... 1000 Hz

Accuracy / drift

Error < 0.001Hz at 10 ... 65Hz,

Error < 0.01Hz  at 65Hz...450Hz

Error < 0.02Hz  at 450Hz...1000Hz

Resolution

0.001Hz

Phase

Range

- 360° ... +360°

Accuracy / drift

Error < 0.2 °

Resolution

0.1°

Timer

Range

Infinite

Accuracy / drift

Error<0.1ms

DC generators

Voltage ranges

0 ... 300V/110W

Current ranges

0 ... 20A/300W

Accuracy

<0.07% reading + 0.03% range guaranteed at 0-300V

<0.04% reading + 0.02% range typical at 0-300V

<0.14% reading + 0.06% range guaranteed at 0-20A

<0.05% reading + 0.02% range typical at 0-20A

Resolution

1mA; 1 mV

Aux DC Supply

Range

0...300V/110W

Binary inputs

Number

8 pairs

Compatible Voltage

10V ... 250V  DC

Binary outputs

Number

4 Pairs

Capacity

250V/3A  AC/DC

Synchronization

Synchronization mode

GPS

Harmonic

Harmonic overlap times

2 ... 20 times

Power supply

Nominal input voltage

85V…264V ac

Power

2000VA

Nominal frequency

47Hz….65Hz

Environmental conditions

Operation temperature

-5°C ... 55 °C

Storage temperature

-20°C ... 75 °C

Humidity range

5% ... 90 %,  non-condensing

Weight

17.5 KG

Dimensions

480(D)×140 (W)×360 (H) mm

PC connection

RJ45



K30 Series Protection Relay Test Set:



Model

Channels

AC Outputs

K3063i / K3063Li

10 output channels

6*30A/3*40A/4*300V

K3030i / K3030Li

7 output channels

3*30A/4*300V

K3066

13 output channels

6*20A/3*40A/7*130V

K3063

10 output channels

6*20A/3*40A/4*130V

K3040

7 output channels

3*40A/4*130V

K3030

7 output channels

3*30A/4*130V

Major functions:



Items

IEEE(R) No.

Synchronization relay



Fault transplay



GPS Synchronization



Overcurrent relays

50/76

Inverse time overcurrent relays

51

Undercurrent relays

37

Ground fault relays

50

Directional overcurrent relays

67

Directional ground fault relays

67N

Overvoltage relays

59

Undervoltage relays

27

Directional voltage relays

91

Directional power relays

32

Power factor relays

55

Differential protection (differential circuits)

87

Distance protection equipment (phase by phase)

21

Negative sequence overcurrent relays

46N

Motor overload protection

51/86

Automatic reclosing devices

79

Tripping relays

94

Voltage regulating relays



Overimpedance relays,  Z>



Underimpedance relays,  Z



Time-delay relays
