| Brand Name: | Kingsine |
| Model Number: | KS803 |
| MOQ: | 1 set |
| Price: | Negotiation |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C,T/T |

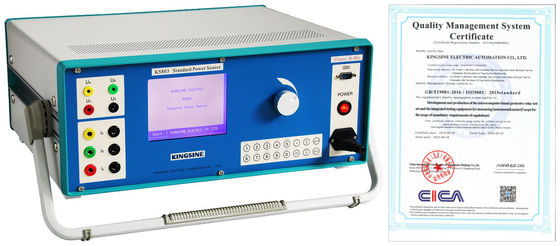

Overcurrent IEC61850 Relay Test Equipment for chemical industry
Description Of Overcurrent Relay Test Device
Applied to Grid Corporation of measurement testing centers, power companies and power plants measured ministries, national institutions at all levels of measurement tests, also applies to the railway, petroleum, chemical industry, large-scale industrial and mining enterprises and the meter manufacturers, etc.
Feature Of Overcurrent Relay Test System
Open protocol for software self-programming.
AC voltage sources: 3x900V@3x25VA, accuracy 0.05%
AC current sources: 3x30A@3x25VA, accuracy 0.05%
3-phase Harmonic Standard Power: 2-31x orders with 0.1 % accuracy
3-years guarantee of free repair, and life-long maintenance, Free software update and training
Specification Of Overcurrent Relay Test Kit
| Output & Measuring AC Voltage | |
| Available Ranges | 10V, 30V, 100V, 300V, 750V, auto-shift |
| Adjustment range | 0~120%Rg |
| Adjustment fineness | Range x 0.01% |
| Resolution | Range x 0.01% |
| Accuracy | 0.05%Rg |
| Stability | 0.01% / 1min |
| Output & Measuring AC Current | |
| Available Ranges | 100mA, 1A, 5A, 10A, 25A; auto-shift |
| Adjustment range | 0~120%Rg |
| Adjustment fineness | Range x 0.01% |
| Resolution | Range x 0.01% |
| Accuracy | 0.05%Rg |
| Stability | 0.01% / 1min |
| Output & Measuring AC Power Factor | |
| Output Range | -1 ~ 0 ~ +1 |
| Measuring Accuracy | 0.0005 |
| Adjustment fineness | 0.0001 |
| Output & Measuring Harmonic | |
| Harmonic Setting | 2~31 |
| Harmonic Content | voltage, current ≤30% (as against fundamental) |
| Harmonic Output Accuracy | 0.1% (1st~19th, as against fundamental) |
| 0.2% (20th~31st, as against fundamental) | |
| Harmonic Phase | 0~360º, adjustable |
Advantage Of Overcurrent Relay Test Set
| ● | JJG124-93 Verification Regulation of Ammeter, Voltmeter & Ohmmeter |
| ● | GB/T767-1999 Direct Acting Indicating Analogue Electrical Measuring Instruments & Accessories |
| ● | SD110-83 Inspection Regulation of Electrical Indicating & Measuring Instruments |
| ● | JJG440-86 Verification Regulation of Frequency Single Phase Meters |
| ● | JJG603-89 Verification Regulation of Pointer Frequency Meters |
FAQ
Q: 1. How many countries have KINGSINE exported so far ?
A: KINGSINE brand products have been successfully served clients across more than 70 countries worldwide, inclusive of ABB, SIEMENS, SCHNEIDER, GE etc.
Q: 2. What is the lead time for delivery?
A: It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
Q: 3. Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.
