| Brand Name: | KINGSINE |
| Model Number: | K2030i |
| MOQ: | 1 set |
| Price: | Negotiation |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C,T/T |

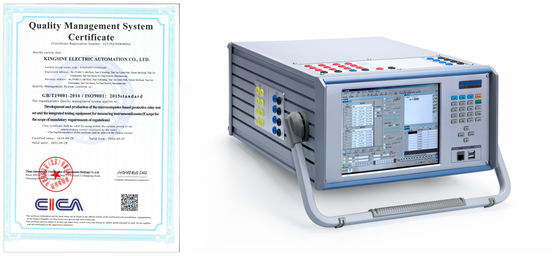

IEC61850 TFT LCD Touch Screen Relay Test System KINGSINE K2030i
Description Of Distance Relay Test Device Support IEC61850
Comprehensive test instrument develop based on intelligent substation testing, mainly function is protection relay testing, sampling value analysis, SCD file analysis/comparison and MMS service. Suitable for detection and testing of IED equipment such as intelligent substation protection relay, measurement and control device, merge unit and intelligent terminal. Also can used in signal check of substation control layer.
Feature Of Distance Relay Test System Support IEC61850
9.7” True color TFT LCD, touch screen and keyboard operating, w/wo laptop control;
The ever-expanding test library templates;
Fully function KRT software testing modules;
Power system model for dynamic testing.
Specification Of Distance Protection Relay Test Set
| Voltage Outputs | ||
| Output Range & Power | 4×310 V ac (L-N) | 124 VA max each |
| 3×350 V dc (L-N) | 140 W max each | |
| Accuracy | ±2mV @ <2V ac <0.015%Rd+0.005Rg Typ. @ 2~310V ac <0.04%Rd+0.01Rg Guar. @ 2~310V ac |
|
| ±10mV @ <5V dc ±0.5% @ ≥5V dc |
||
| Voltage Range | Range I : 30V | |
| Range II : 310V | ||
| Automatic Range | ||
| DC Offset | <10mV Typ./ <60mV Guar | |
| Resolution | 1mV | |
| Distortion | <0.015%Typ. / <0.05% Guar. | |
| Frequency & Phase Angle | ||
| Frequency Range | DC~1KHz, 3KHz transient | |
| Frequency Accuracy | ±0.5ppm | |
| Frequency Resolution | 0.001 Hz | |
| Phase Range | -360°~360° | |
| Phase Accuracy | <0.02° Typ. / <0.1° Guar. 50/60Hz | |
| Phase Resolution | 0.001° | |
| Aux. DC Voltage Source (Battery simulator) | ||
| Range | 0~350V @ 140W max | |
| Accuracy | 0.5%Rg Guar. | |
Advantage Of Distance Protection Relay Test Kit
| Model | Current Outputs | Voltage Outputs |
| K2066i | 6×35A @ 450VA max 3×70A @ 850VA max |
7×310V @ 90VA max |
| K2063i | 6×35A @ 450VA max 3×70A @ 850VA max |
4×310V @ 124VA max |
| K2030i | 3×35A @ 450VA max | 4×310V @ 124VA max |
F&A
Q: 1. How many countries have KINGSINE exported so far ?
A: KINGSINE brand products have been successfully served clients across more than 70 countries worldwide, inclusive of ABB, SIEMENS, SCHNEIDER, GE etc.
Q: 2. What is the lead time for delivery?
A: It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
Q: 3. Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.
Q: 4. What is the shipping method?
A: It could be shipped by air or by express courier (UPS,DHL,TNT,FEDEX, EMS, SF Express and ect) or even by sea.Please refer to us before placing orders.
Q: 5. What's your acceptable payment term?
A: T/T and L/C at sight are our normal acceptable payment terms.
Q: 6.How long is the warranty period?
A: We provide 3-years guarantee of free repair and life-long maintenance.
