| High Light: | 24 Output Channels relay tester kit,secondary injection relay test set,KS12 Series Relay Testing Kit |
||
|---|---|---|---|
24 output Channels, 12x450V + 12x100A.
High burdens ability, 750VA / each current sources, total power up to 1500VA of all current channels, and 300VA / each voltage sources, total power up to 600VA of all voltage channels.
Characteristic
High burdens ability, 750VA / each current sources, total power up to 1500VA of all current channels, and 300VA / each voltage sources, total power up to 600VA of all voltage channels.
In-built GPS module & IRIG-B synchronize function.
19 inch standard chassis design,small dimension. Easy to Centralized panel.
Parameter
| AC Voltage output | ||
| Range | 12×0...450 V | |
| Power | >300VA/Phase | |
| Accuracy | <±0.05% | |
| Resolution | 1mV | |
| AC Current Output | ||
| Range | 12×0...100 A | |
| Power | >750VA/Phase | |
| Accuracy | <±0.05% | |
| Resolution | 1mA | |
| DC Voltage output | ||
| Range | 12×0...450 V | |
| Power | >300VA/Phase | |
| Accuracy | <±0.2% | |
| Resolution | 1mV | |
| DC Current Output | ||
| Range | 6×0...50 A | |
| Power | >500 VA/Phase | |
| Accuracy | <±0.2% | |
| Resolution | 1mA | |
| Others | ||
| Frequency | Range | 5...1000 Hz |
| Accuracy | <0.001 Hz at 0...65 Hz | |
| <0.01 Hz at 65...450 Hz | ||
| <0.02 Hz at 450...1200 Hz | ||
| Resolution | 0.001 Hz | |
| Phase | Range | -360°...360° |
| Accuracy | <0.2° | |
| Resolution | 0.1° | |
| Timing | Range | .0.1 ms...1.5×105 s |
| Accuracy | <1 ms | |
| Harmonic | ||
| Harmonic Times | 2...20Times | |
| Power supply | ||
| AC Voltage | 220V±20% | |
| Range | 85V...264VAC | |
| Power | 5000 VA | |
| Frequency | 47 Hz...65 Hz | |
| Operation Conditions | ||
| Temperature | -20℃…70℃ | |
| Humidity | ≤95%,No | |
| Others | ||
| Weight | <55 kg | |
| Dimension | 358mm×149mm×297mm | |
| Communication Port | 1×RJ45 | |

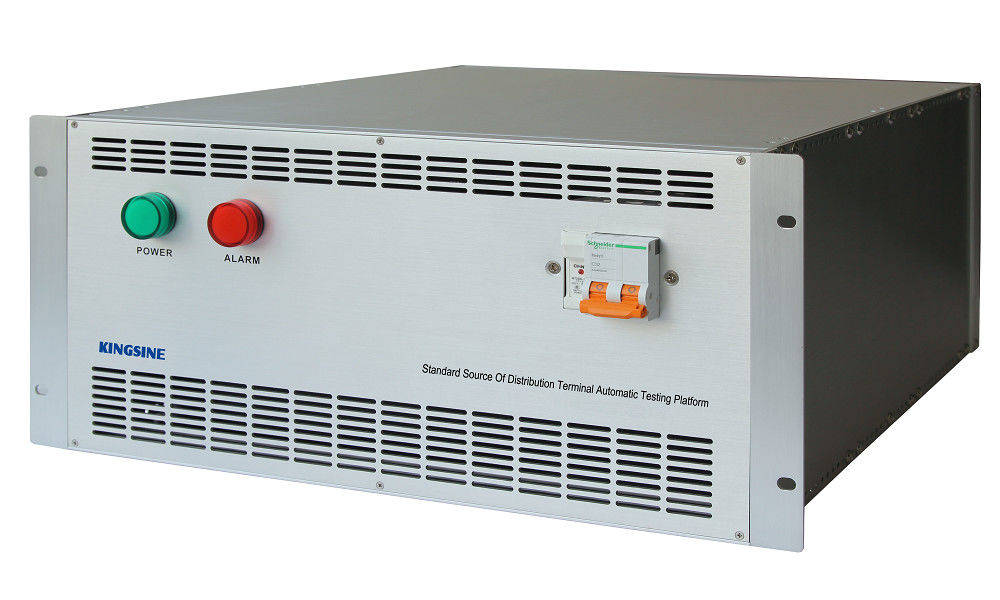

KS1212 is high accuracy, high power, wide output range Standard Source product develop by KINGSINE which is customize for distribution terminal automation testing platform.
