| Brand Name: | Kingsine |
| Model Number: | K2030i |
| MOQ: | 1 set |
| Price: | Negotiation |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C,T/T |

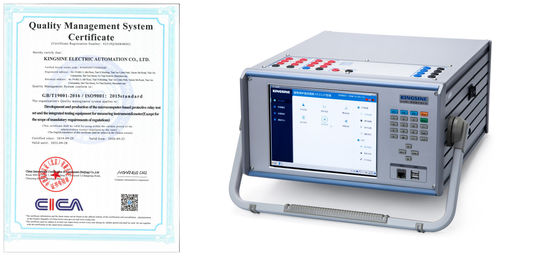

KINGSINE K2030i Relay Testing Kit Three Phase Protection Relay Test
Description Of Three-phase Protection Relay Test conform Goose/SV
Comprehensive test instrument develop based on intelligent substation testing, mainly function is protection relay testing, sampling value analysis, SCD file analysis/comparison and MMS service. Suitable for detection and testing of IED equipment such as intelligent substation protection relay, measurement and control device, merge unit and intelligent terminal. Also can used in signal check of substation control layer.
Feature Of Three-phase Protection Relay Test support IEC61850-9-2
| ● | Universal Relay Test Applications |
| ● | Inbuilt 9.7” True color TFT LCD with touch screen, numerical and shortcut keyboard, fully control with / without laptop |
| ● | 7 Channels (3x35A & 4x310V) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics. |
| ● | Automatic test results assume |
| ● | Automatic test report creation |
| ● | Inbuilt GPS sync end-to-end testing |
| ● | Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection |
| ● | 3-Years guarantee of free repair and life-long maintenance |
| ● | Lightweight, <20Kg |
| ● | Free software upgrade |
Specification Of Three-phase Protection Relay Test Set
| Voltage Outputs | |||
| Output Range & Power | 4×310 V ac (L-N) | 124 VA max each | |
| 3×350 V dc (L-N) | 140 W max each | ||
| Accuracy | ±2mV @ <2V ac <0.015%Rd+0.005Rg Typ. @ 2~310V ac <0.04%Rd+0.01Rg Guar. @ 2~310V ac |
||
| ±10mV @ <5V dc ±0.5% @ ≥5V dc |
|||
| Voltage Range | Range I : 30V | ||
| Range II : 310V | |||
| Automatic Range | |||
| DC Offset | <10mV Typ./ <60mV Guar | ||
| Resolution | 1mV | ||
| Distortion | <0.015%Typ. / <0.05% Guar. | ||
| Current Outputs | |||
| Output Range & Power | 3×35A ac (L-N) | 450 VA max each | |
| 1×100A ac (6L-N) | 1200 VA max | ||
| 3×20A dc (L-N) | 300W max each | ||
| Accuracy | ±1mA @ <0.5A ac <0.02%Rd+0.01Rg Typ. @ 0.5A~35A ac <0.05%Rd+0.02Rg Guar. @ 0.5A~35A ac |
||
| ±5mA @ <1A dc ±0.5% @ ≥1A dc |
|||
| Current Range | Range I: 3A | ||
| Range II: 35A | |||
| Automatic Range | |||
| DC Offset | <3mA Typ./ <10mA Guar | ||
| Resolution | 1mA | ||
| Distortion | <0.025%Typ. / <0.07% Guar. | ||
| Binary Output (Relay Type) | |||
| Quantity | 4pairs | ||
| Type | Potential free relay contacts, software controlled | ||
| Break Capacity AC | Vmax: 400Vac / Imax:8A / Pmax:2500VA | ||
| Break Capacity DC | Vmax: 300Vdc / Imax:5A / Pmax:150W | ||
| Binary Output (Semiconductor Type) | |||
| Quantity | 4pairs | ||
| Type: | Open-collector, Combination type male | ||
| Break Capacity DC | 5~15Vdc / 5mA, 10mA max | ||
| Response time: | 100us | ||
Advantage Of Three-phase Protection Relay Test Kit
| Model | Current Outputs | Voltage Outputs |
| K2066i | 6×35A @ 450VA max 3×70A @ 850VA max |
7×310V @ 90VA max |
| K2063i | 6×35A @ 450VA max 3×70A @ 850VA max |
4×310V @ 124VA max |
| K2030i | 3×35A @ 450VA max | 4×310V @ 124VA max |
FAQ
Q: 1. How many countries have KINGSINE exported so far ?
A: KINGSINE brand products have been successfully served clients across more than 70 countries worldwide, inclusive of ABB, SIEMENS, SCHNEIDER, GE etc.
Q: 2. What is the lead time for delivery?
A: It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
Q: 3. Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.
|
|
