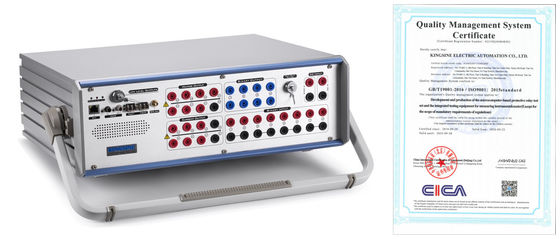

KINGSINE K3130i Relay Protection Tester 7 Channels Outputs
Description Of Frequency Relay Test
Comprehensive test instrument develop based on intelligent substation testing, mainly function is protection relay testing, sampling value analysis, SCD file analysis/comparison and MMS service. Suitable for detection and testing of IED equipment such as intelligent substation protection relay, measurement and control device, merge unit and intelligent terminal. Also can used in signal check of substation control layer.
Feature Of Frequency Relay Test Device
| ● | Universal Relay Test Applications |
| ● | 7 Channels (3x35A & 4x310V) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics. |
| ● | Online Vector display |
| ● | Automatic test results assume |
| ● | Automatic test report creation |
| ● | Inbuilt GPS and IRIG-B sync end-to-end testing |
| ● | Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection |
| ● | 3-Years guarantee of free repair and life-long maintenance |
| ● | Lightweight, <18Kg |
| ● | Free software upgrade |
Specification Of Frequency Relay Test Kit
| Voltage Outputs | ||
| Output Range & Power | 4×310 V ac (L-N) | 124 VA max each |
| 3×350 V dc (L-N) | 140 W max each | |
| Accuracy | ±2mV @ <2V ac <0.015%Rd+0.005Rg Typ. @ 2~310V ac <0.04%Rd+0.01Rg Guar. @ 2~310V ac |
|
| ±10mV @ <5V dc ±0.5% @ ≥5V dc |
||
| Voltage Range | Range I : 30V | |
| Range II : 310V | ||
| Automatic Range | ||
| DC Offset | <20mV Typ./ <100mV Guar | |
| Resolution | 1mV | |
| Distortion | <0.015%Typ. / <0.05% Guar. | |
| Current Outputs | ||
| Output Range & Power | 3×35A ac (L-N) | 480 VA max each |
| 1×100A ac (6L-N) | 1200 VA max | |
| 3×20A dc (L-N) | 300W max each | |
| Accuracy | ±1mA @ <0.5A ac <0.02%Rd+0.01Rg Typ. @ 0.5A~35A ac <0.05%Rd+0.02Rg Guar. @ 0.5A~35A ac |
|
| ±5mA @ <1A dc ±0.5% @ ≥1A dc |
||
| Current Range | Range I: 3A | |
| Range II: 35A | ||
| Automatic Range | ||
| DC Offset | <3mA Typ./ <10mA Guar | |
| Resolution | 1mA | |
| Distortion | <0.025%Typ. / <0.07% Guar. | |
| Power supply & Environment | ||
| Nominal Input Voltage | 100~240Vac | |
| Permissible Input Voltage | 85~260Vac, 125~350VDC | |
| Nominal Frequency | 50/60Hz | |
| Permissible Frequency | 45Hz~65Hz | |
| Power Consumption | 1500 VA max | |
| Connection Type | Standard AC socket 60320 | |
| Operating Temperature | -10℃~55℃ | |
| Storage Temperature | -20℃~70℃ | |
| Humidity | <95%RH, non-condensing | |
Advantage Of Frequency Relay Test Device
Energy Meter Calibration Function:
| Energy Meter Calibration Hardware is ready, to be active | |
| Sensor Usage | Mechanical meters / Electronic meters |
| Sensor Output | High lever:>4.5V, Low level:<0.2V |
| Pulse Input | 1 pulse input port, 5Vdc high level valid only. |
| Pulse Range | 500KHz pulse input Max. |
| Pulse Output | 1 Transistor output, Open-collector, 5Vdc/5mA |
