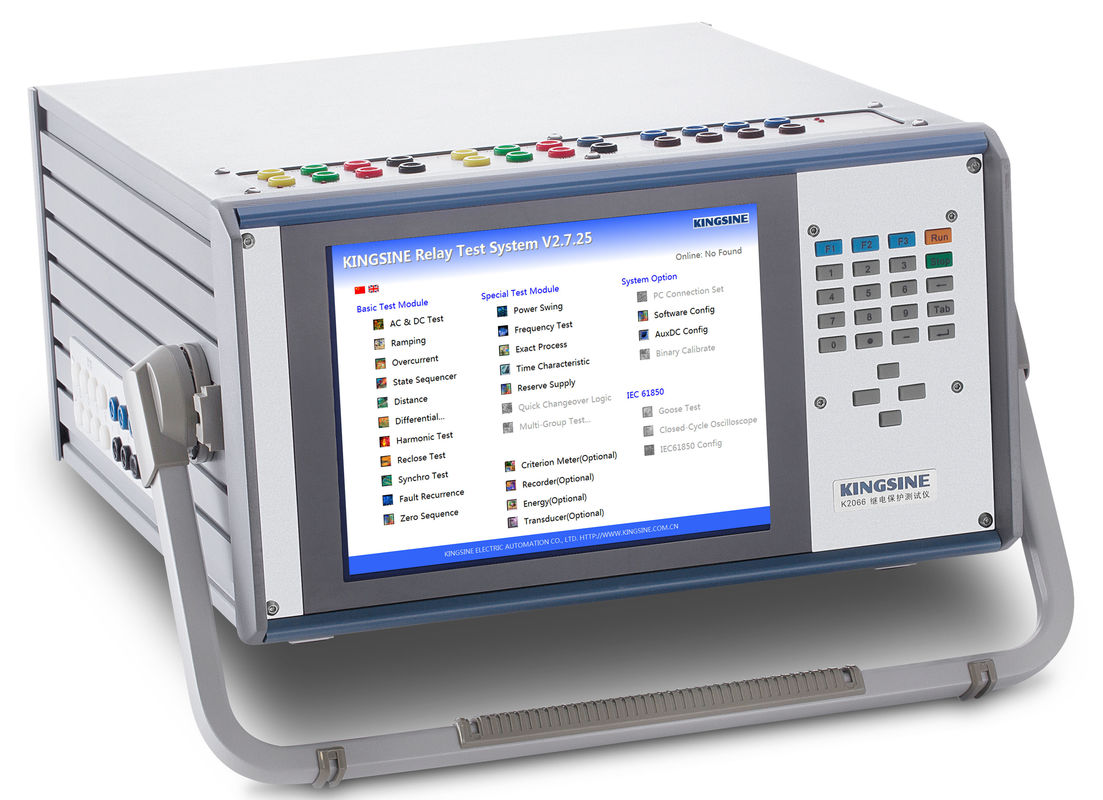

Universal Protection Relay Test K2063i Fully Function KRT Software Testing Modules

Universal Protection Relay Test K2063i Fully Function KRT Software Testing Modules
Universal Protection Relay Test K2063i Fully Function KRT Software Testing Modules

Large Image :  Universal Protection Relay Test K2063i Fully Function KRT Software Testing Modules

Product Details:
Place of Origin: China
Brand Name: KINGSINE
Certification: ISO9001,CE
Model Number: K2063i
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiale
Delivery Time: 15 working days
Payment Terms: T/T in advance,L/C
Supply Ability: 50 sets/M
Detailed Product Description
Output: 6x35A & 4x310V Screen: Inbuilt 9.7” True Color TFT LCD With Touch Screen
Guarantee: 3 Years Lightweigh: 22kg
High Light:

Universal Protection Relay Test K2063i

,

Fully Function protective relay testing

  • Universal Relay Test Applications
  • 6x35A & 4x310V independent high burden output channels
  • Lightweight, <20Kg
  • Inbuilt 9.7” True color TFT LCD with touch screen, numerical and shortcut keyboard, fully control with / without laptop
  • GPS / IRIG-B code synchronize end-to-end testing
  • Fully function KRT software testing modules
  • 3-Years guarantee of free repair and life-long maintenance
  • Free software upgrade
  • Optional function for energy calibration, 13 Channels Low-Level outputs etc



Ordering Ref.



Model Current Outputs Voltage Outputs
K2066 6×30A @ 450VA max / 3×60A @ 850VA max 7×130V @ 75VA max
K2066i 6×35A @ 450VA max / 3×70A @ 850VA max 7×310V @ 90VA max
K2063 6×30A @ 450VA max / 3×60A @ 850VA max 4×130V @ 75VA max
K2063i 6×35A @ 450VA max / 3×70A @ 850VA max 4×310V @ 124VA max
K2030 3×30A @ 450VA max 4×130V @ 75VA max
K2030i 3×35A @ 450VA max 4×310V @ 124VA max






Characteristic

  • 10 Channels (4V + 6I) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 20x harmonics.
  • Variable battery simulator, DC 0-310V, 124Watts max.
  • Graphical test modules and templates for testing of various relays
  • Quick relay testing facility in Manual mode
  • Shot/Search/Check, Point & Click testing
  • RIO/XRIO import & export facility
  • Switch on to fault test(SOTF)
  • Power system model for dynamic testing
  • Inbuilt GPS / IRIG-B sync end-to-end testing
  • Online Vector display
  • Automatic test results assume
  • Automatic test report creation
  • Self-protect for wrong power supply up to 450V AC/DC input.
  • Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection





Parameters

Voltage Outputs
Output Range & Power 4×310 V ac (L-N) 124 VA max each
2×620 V ac (L-L) 248 VA max each
3×310 V dc (L-N) 124 W max each
Accuracy

±2 mV @ 0.2~2 V ac

<0.07%Rd+0.03Rg Guar. @ 2~310V ac

<0.03%Rd+0.01Rg Typ. @ 2~310V ac

±10mV @ 0.5 V~5 V dc

±0.5% @ 5 V~310 V dc

Resolution 1mV
Distortion <0.1% Guar. / <0.05%Typ.
Current Outputs
Output Range & Power 6×35A ac (L-N) 450 VA max each
3×70A ac (2L-N) 850 VA max each
1×180A ac (6L-N) 1200 VA max
3×20A dc (L-N) 300W max each
Accuracy

±1 mA @ 0.2A~0.5A ac

<0.15%Rd+0.05Rg Guar. @ 0.5~35A ac

<0.05%Rd+0.02Rg Typ. @ 0.5~35A ac

±5mA @ 0.2 A~1 A dc

±0.5% @ 1 A~20 A dc

Resolution 1mA
Distortion <0.1% Guar. / <0.05%Typ.
Frequency Output
Range 5~1000 Hz, 3KHz transient output
Accuracy <1ppm @ 5~65 Hz
<10ppm @ 65~450 Hz
<20ppm @ 450~1000 Hz
Resolution 0.001 Hz
Phase Output
Range -360°~360°
Accuracy <0.05° Typ. / <0.1° Guar.
Resolution 0.001°
Aux. DC Voltage Source (Battery simulator)
Range 0~310V @ 124W max
Binary Input
Quantity 8pairs
Input Characteristics 0~400Vdc / Potential free
Time Resolution <0.1ms
Max. Measuring Time Infinite
Debounce Time 0~25ms
Binary Output
Quantity

4pairs NO relay contacts

(4paris semiconductors output optional)

Type Potential free, software controlled
Break Capacity

Vmax:300Vac Imax:4A Pmax:1000VA

Vmax:300Vdc Imax:4A Pmax:300W

Synchronization
Synchronization Mode GPS, SMA type antenna connector
Harmonic
Superimposed Numbers 2~20times
Power supply & Environment
Nominal Input Voltage 110/220/230Vac preselection
Permissible Input Voltage

+/-20%, Max 264Vac

Self-protect and alarm if input voltage out of range

Nominal Frequency 50/60Hz
Permissible Frequency 45Hz~65Hz
Power Consumption 1500 VA max
Connection Type Standard AC socket 60320
Operating Temperature -10℃~55℃
Storage Temperature -25℃~70℃
Humidity <95%RH, non-condensing
Others
PC Connection RJ45 Ethernet, 10/100/1000M
Grounding Terminal 4mm banana socket
Weight 20 Kg
Dimensions(W x D x H) 480×320×160(mm)




Additional Information (Optional Modules)

Low-Level outputs
Quantity 13 Channels, phoenix male type
Voltage Outputs Range AC 0~8V, DC 0~10V
Current Outputs Range Nominal 2mA, 10mA max transient
Output Power ≥0.5VA
Accuracy

(0.01~0.8 Vrms):<0.05% Typ. / <0.1% Guar.

(0.8~8 Vrms): <0.02% Typ. / <0.05% Guar.

Resolution 0.25mV
Energy Meter Calibration
Sensor Usage Mechanical meters / Electronic meters
Sensor Output High lever:>4.5V, Low level:<0.2V
Pulse Input 1 pulse input port
Pulse Range 500KHz pulse input Max.
Pulse Output 1 Transistor output
