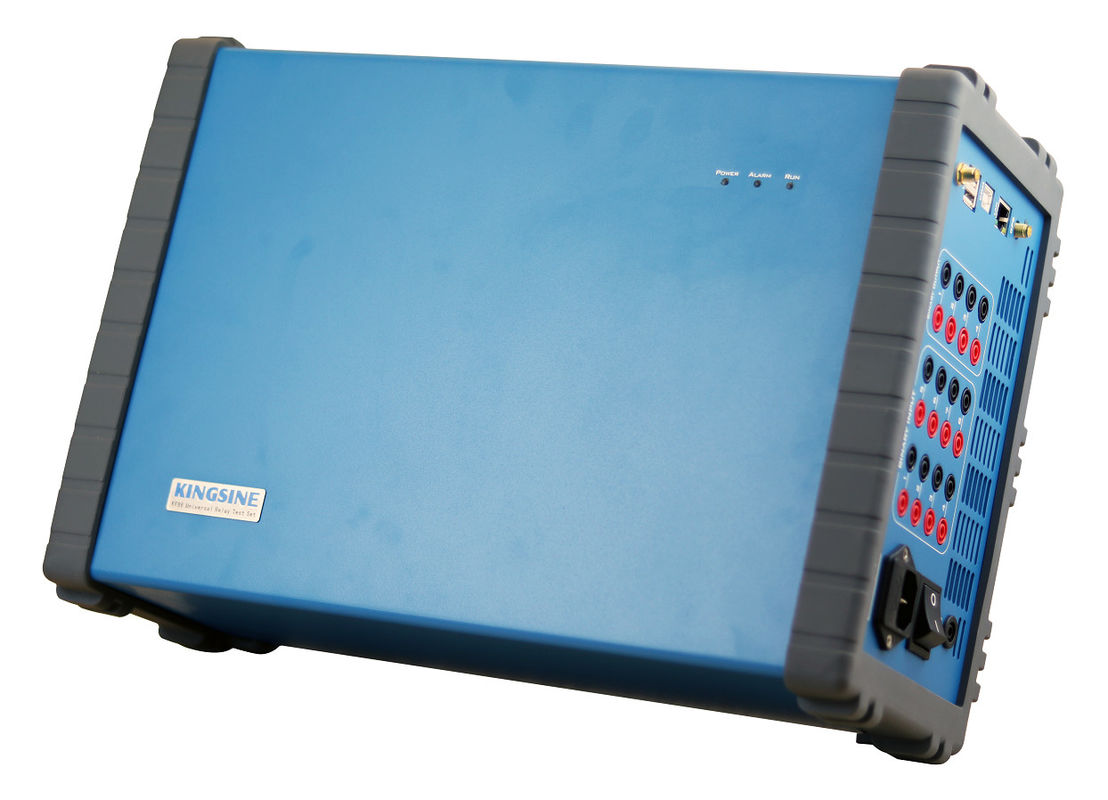

Compact 6 Phase IEC61850 Secondary Injection Test Kit KINGSINE KF85
Discription of Secondary Injection Test Set Support IEC61850 KF85
Compact 6-phase relay test set with high accuracy & full solution (complying IEC61850 sampled value and GOOSE), fully meet all the requirements for detection and debugging of IEC61850 IEDs, Merge Units, station control systems and traditional protection relays.
Feature Of Secondary Injection Test Device Support IEC61850 KF85
| ● | The channel quality of the output SV message can be set, and the simulation unit can be simulated and debug, set to invalid, set to run state, and can simulate double AD inconsistency and other tests. |
| ● | Built-in GPS/Beidou timing module with GPS, IRIG-B code synchronization time function; |
| ● | Full-featured software test module, AC, status sequence, recloser test, distance protection, overcurrent protection, inverse time overcurrent, zero sequence protection, ramping test, power direction, differential test, frequency test, synchronize test software modules |
| ● | With the unit test function, you can test the unit's precision, time accuracy, punctuality accuracy, and data transmission and testing functions. |
| ● | Support the graphical display of SCD files, the instrument can graphically display the IED device interconnection relationship and virtual terminal connection. |
| ● | With the IRIG-B code transmission function, when the external GPS is used, it can be used as a timing device. |
Specification Of Secondary Injection Test Kit Support IEC61850 KF85
|
AC current source |
|
|
Amplitude & Power |
6×20A @ 85VA max each; |
|
Accuracy |
±1mA @ <0.5A |
|
Range |
Range I: 3A |
|
DC Offset |
<3mA Typ./ <10mA Guar |
|
Resolution |
1mA |
|
Distortion |
<0.025%Typ. / <0.07% Guar. |
|
Ascends/Descent response |
<100us |
|
DC Current source |
|
|
Amplitude & Power |
6×10A @ 50W max |
|
Accuracy |
±5mA @ <1A |
|
Ascends/Descent response |
<100us |
|
AC voltage source |
|
|
Amplitude & Power |
6×300V @65VA max each |
|
Accuracy |
±2mV @ <2V |
|
Range |
Range I: 13V |
|
DC Offset |
<10mV Typ./ <60mV Guar |
|
Resolution |
1mV |
|
Distortion |
<0.015%Typ. / <0.05% Guar. |
|
Ascends/Descent response |
<100us |
|
DC Voltage source |
|
|
Amplitude & Power |
6×150V @ 75W max |
|
Accuracy |
±10mV @ <5V |
|
Ascends/Descent response |
<100us |
Advantage Of Secondary Injection Test System Support IEC61850 KF85
(Optional modules)
IEC61850 functions:
| ● | Fully complying IEC61850 Sampling value and GOOSE; (IEC61850-9-1, IEC61850-9-2/(LE), IEC60044-7/8) |
| ● | Able to simultaneously output sampling value and analog signals, or subscriber and publish GOOSE message and relay contact binary I/O function. |
| ● | Up to 36 sampling value channels can be mapped. |
FAQ
Q: 6. How long is the warranty period?
A: We provide 3-years guarantee of free repair and life-long maintenance.
Q: 7. What is your advantages?
A: KINGSINE have been specializing in electric power testing & measurement for over 21 years. All-in-One design concept, high power burden & high output accuracy but with high cost-efficiency, 3-years guarantee of free repair and life-long maintenance.
Q: 8. What is the application range of the product?
A: KINGSINE brand Relay Test Sets are featured with fully function of state sequencer,Harmonic,recloser test , Line differential, Distance,Overcurrent, Zero sequencer, Ramping, Power direction, Differential rate, Differential Harmonic, Synchronize, Busbar differential, Frequency test, Dv/Df test, etc.
