Relay Test Set
Created with Pixso. High Voltage GPS Protective Relay Test Set , 4 Phase AC / 250V K1063i

High Voltage GPS Protective Relay Test Set , 4 Phase AC / 250V K1063i

Brand Name: Kingsine
Model Number: K1063i
MOQ: 1 set
Delivery Time: 15 working days
Payment Terms: T/T in advance ,L/C
Detail Information
Place of Origin:
China
Certification:
ISO9001,CE
Supply Ability:
50 sets/ month
Highlight:

250V K1063i protective relay testing

,

4 Phase AC Protection Relay Test Set

,

GPS Protective Relay Test Set

Product Description

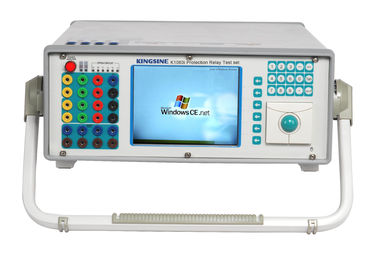

 High Voltage GPS Protective Relay Test Set , 4 Phase AC / 250V K1063i



6.4 LCD screen
4 pairs Binary output
Capacity:250V/3A AC/DC
4-phase AC (L-N)



In-house and field test, Laptop is unnecessary!

With microprocessor& LCD screen, no matter you are doing in -house or field testing, Laptop is unnecessary .Besides, the powerful & complete software helps you more easy!

 1. Adopts 6.4 large LCD screen, and provided with VGA video interface, making it available to connect to projector for training;
2. With alarm function of housing grounding testing and external voltage input, to guaranty personal security;
3. Offer independent Aux. DC to tested devices, 0 ~ 300V/0.6A(Poleless and adjustable);
4. Two in one of meter and source, with function of both internal and external testing, self-calibration, oscillograph, and the duration of each oscillograph reaches 50S (optional function);
5. Function of transducer and energy meter testing (optional function);
6. Adopt Smart and stable Window CE embedded system. Windows has the advantage of small application program with fast speed, which overcomes the problem of bad stability, easy-damage hardware, and virus of Windows 98/2000/XP;
7. Use high-speed CF card as the storage, more stable, anti-shock compared with ordinary hardware, so works more reliable.



Main specifications:



Voltage generators

Setting

Range

4-phase AC (L-N)

4 x 0 ... 300 V

2-phase AC (L-L)

2 x 0 ... 600 V

Power

4-phase AC (L-N)

4 x 110VA,  at 0 ... 300 V

2-phase AC (L-L)

2 x 220VA,  at 0 ... 600 V

Accuracy

<0.07% reading + 0.03% range guaranteed at 0-300V

<0.04% reading + 0.01% range typical at 0-300V

Resolution

1mV

Current generators

Setting

Range

6-phase AC (L-N)

6 x 0 ... 20 A

3-phase AC (2L -N)

3 x 0 ... 40 A (Group A II B)

1-phase AC (6L-N)

1 x 0 ... 120 A

Power

6-phase AC (L-N)

6 x 150 VA , at 0 ... 20A Max 250VA, with the other current channels unload

3-phase AC (2L -N)

3 x 300VA,  at 0 ... 40A (Group A II B) Max 450VA,  with the other current channels unload

1-phase AC (6L-N)

1 x 900 VA

Accuracy

<0.14% reading + 0.06% range guaranteed at 0-40A

<0.05% reading + 0.02% range typical at 0-40A

Resolution

1mA

Generators,  general

Frequency

Range

0 ... 1000 Hz

Accuracy / drift

Error < 0.001Hz at 10 ... 65Hz,

Error < 0.01Hz  at 65Hz...450Hz

Error < 0.02Hz  at 450Hz...1000Hz

Resolution

0.001Hz

Phase

Range

- 360° ... +360°

Accuracy / drift

Error < 0.2 °

Resolution

0.1°

Time

Range

0 ... 999, 999.999s

Accuracy / drift

Error<0.1ms

Resolution

1ms

DC generators

Voltage ranges

0 ... 300V/150VA

Current ranges

0 ... 20A/300W

Accuracy

Error<0.1% reading + 0.1% range guaranteed at 0…300 V;

Error <0.1% reading + 0.1% range guaranteed at

0...20 A;

Resolution

1mA; 1 mV

Harmonic



Harmonic superpose times

2 ... 20

Aux DC Supply

Range

0... 300V /0.6A

Binary Inputs

Number

8 pairs

Compatible Voltage

10V ... 250V   DC

Binary outputs

Number

4 Pairs

Capacity

250V/3A      AC/DC

Synchronization

Synchronization mode

GPS

Power supply

Nominal input voltage

220V±10% VAC,  1-phase

Power

1000VA

Nominal frequency

50±10% Hz

Environmental conditions

Operation temperature

-5°C ...55 °C

Storage temperature

-20°C ...75 °C

Humidity range

5 ... 90 %,  non-condensing

Weight

20KG

Dimensions

460(D)×140 (W)×360 (H) mm

Interface

RJ45 , USB, RS232, PS/2, VGA

PC Connection

RJ45



K10 Series Protection Relay Test Set:



Model

Channels

AC Outputs

K1063i

10 output channels

6*30A/3*60A/4*300V

K1066i

13 output channels

6*30A/3*60A/7*300V

K1066

13 output channels

6*20A/3*40A/7*130V

K1066+

13 output channels,

6*30A/3*60A/7*130V

K1063

10 output channels

6*20A/3*40A/4*130V

K1036

10 output channels

3*40A/7*130V

K1040

7 output channels

3*40A/4*130V

K1030

7 output channels

3*30A/4*130V
