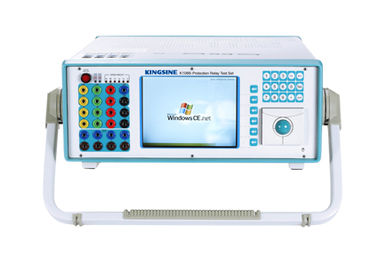

250V / 2A Poleless Protection Relay Test Set K1066i with LCD Screen
Binary Inputs Number: 8 pairs
Power:1000VA
In house and field test, Laptop is unnecessary
Nominal input voltage:220V±10% VAC, 1-phase
In-house and field test, Laptop is unnecessary!
With microprocessor& LCD screen, no matter you are doing in -house or field testing, Laptop is
unnecessary .Besides, the powerful & complete software helps you more easy!
1. Adopts 6.4 large LCD screen, and provided with VGA video interface, making it available to connect to
projector for training;
2. With alarm function of housing grounding testing and external voltage input, to guaranty personal
security;
3. Offer independent Aux. DC to tested devices, 0 ~ 300V/0.6A(Poleless and adjustable);
4. Two in one of meter and source, with function of both internal and external testing, self-calibration,
oscillograph, and the duration of each oscillograph reaches 50S (optional function);
5. Function of transducer and energy meter testing (optional function);
6. Adopt Smart and stable Window CE embedded system. Windows has the advantage of small
application program with fast speed, which overcomes the problem of bad stability, easy-damage
hardware, and virus of Windows 98/2000/XP;
7. Use high-speed CF card as the storage, more stable, anti-shock compared with ordinary hardware, so
works more reliable.
Main Specifications:
|
Voltage generators |
||
|
Setting Range |
7-phase AC (L-N) |
7 x 0 ... 300 V |
|
2-phase AC (L-L) |
2 x 0 ... 600 V |
|
|
Power |
7-phase AC (L-N) |
7 x 110VA, at 0 ... 300 V |
|
2-phase AC (L-L) |
2 x 220VA, at 0 ... 600 V |
|
|
Accuracy |
<0.07% reading + 0.03% range guaranteed at 0-300V <0.04% reading + 0.01% range typical at 0-300V |
|
|
Resolution |
1mV |
|
|
Current generators |
||
|
Setting Range |
6-phase AC (L-N) |
6 x 0 ... 30 A |
|
3-phase AC (2L-N) |
3 x 0 ... 40 A (Group A II B) |
|
|
1-phase AC (6L-N) |
1 x 0 ... 120 A |
|
|
Power |
6-phase AC (L-N) |
6 x 150 VA , at 0 ... 20A Max 250VA, with the other current channels unload |
|
3-phase AC (2L-N) |
3 x 300VA, at 0 ... 40A (Group A II B) Max 450VA, with the other current channels unload |
|
|
1-phase AC (6L-N) |
1 x 900 VA |
|
|
Accuracy |
<0.14% reading + 0.06% range guaranteed at 0-40A <0.05% reading + 0.02% range typical at 0-40A |
|
|
Resolution |
1mA |
|
|
Generators, general |
||
|
Frequency |
Range |
0 ... 1000 Hz |
|
Accuracy / drift |
Error < 0.001Hz at 10 ... 65Hz, Error < 0.01Hz at 65Hz...450Hz Error < 0.02Hz at 450Hz...1000Hz |
|
|
Resolution |
0.001Hz |
|
|
Phase |
Range |
- 360° ... +360° |
|
Accuracy / drift |
Error < 0.2 ° |
|
|
Resolution |
0.1° |
|
|
Time |
Range |
0 ... 999, 999.999s |
|
Accuracy / drift |
Error<0.1ms |
|
|
Resolution |
10μs |
|
|
DC generators |
||
|
Voltage ranges |
0 ... 300V/150VA |
|
|
Current ranges |
0 ... 20A/300W |
|
|
Accuracy |
Error<0.1% reading + 0.1% range guaranteed at 0…300 V; Error <0.1% reading + 0.1% range guaranteed at 0...20 A; |
|
|
Resolution |
1mA; 1 mV |
|
|
Harmonic |
||
|
Harmonic superpose times |
2 ... 20 |
|
|
Aux DC Supply |
||
|
Range |
0...300V/0.6A |
|
|
Binary Inputs |
||
|
Number |
8 pairs |
|
|
Compatible Voltage |
10V ... 250V DC |
|
|
Binary outputs |
||
|
Number |
4 Pairs |
|
|
Capacity |
250V/2A AC/DC |
|
|
Synchronization |
||
|
Synchronization mode |
GPS |
|
|
Power supply |
||
|
Nominal input voltage |
220V±10% VAC, 1-phase |
|
|
Power |
1000VA |
|
|
Nominal frequency |
50±10% Hz |
|
|
Environmental conditions |
||
|
Operation temperature |
-5°C ...55 °C |
|
|
Storage temperature |
-20°C ...75 °C |
|
|
Humidity range |
5 ... 90 %, non-condensing |
|
|
Weight |
20KG |
|
|
Dimensions |
460(D)×140 (W)×360 (H) mm |
|
|
Interface |
RJ45 , USB, RS232, PS/2, VGA |
|
|
PC Connection |
RJ45 |
|
K10 Series Protection Relay Test Set:
|
Model |
Channels |
AC Outputs |
|
K1063i |
10 output channels |
6*30A/3*60A/4*300V |
|
K1066i |
13 output channels |
6*30A/3*60A/7*300V |
|
K1066 |
13 output channels |
6*20A/3*40A/7*130V |
|
K1066+ |
13 output channels, |
6*30A/3*60A/7*130V |
|
K1063 |
10 output channels |
6*20A/3*40A/4*130V |
|
K1036 |
10 output channels |
3*40A/7*130V |
|
K1040 |
7 output channels |
3*40A/4*130V |
|
K1030 |
7 output channels |
3*30A/4*130V |
