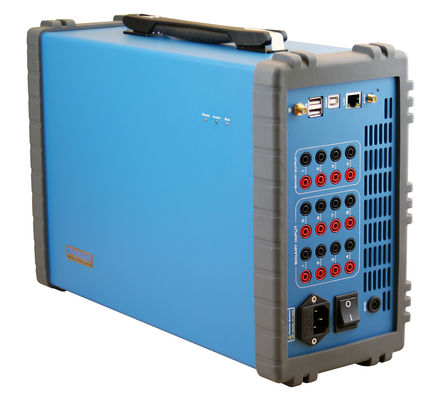

KINGSINE KF85 Universal Relay Test Set Protection Relay Testing
Description Of Distance Relay Test Device Support IEC61850
Comprehensive test instrument develop based on intelligent substation testing, mainly function is protection relay testing, sampling value analysis, SCD file analysis/comparison and MMS service. Suitable for detection and testing of IED equipment such as intelligent substation protection relay, measurement and control device, merge unit and intelligent terminal. Also can used in signal check of substation control layer.
Feature Of Distance Relay Test System Support IEC61850
Compact 6-phase relay test set with high accuracy & full solution (complying IEC61850 sampled value and GOOSE), fully meet all the requirements for detection and debugging of IEC61850 IEDs, Merge Units, station control systems and traditional protection relays.
Specification Of Distance Protection Relay Test Set
| AC current source | |
| Amplitude & Power | 6×20A @ 85VA max each; 3×40A @ 170VA max each; |
| Accuracy | ±1mA @ <0.5A <0.02%Rd+0.01Rg Typ. @ 0.5A~20A <0.05%Rd+0.02Rg Guar. @ 0.5A~20A |
| Range | Range I: 3A Range II: 20A Automatic Range |
| DC Offset | <3mA Typ./ <10mA Guar |
| Resolution | 1mA |
| Distortion | <0.025%Typ. / <0.07% Guar. |
| Ascends/Descent response | <100us |
| DC Current source | |
| Amplitude & Power | 6×10A @ 50W max |
| Accuracy | ±5mA @ <1A ±0.2% @ ≥1A |
| Ascends/Descent response | <100us |
| AC voltage source | |
| Amplitude & Power | 6×300V @65VA max each |
| Accuracy | ±2mV @ <2V <0.015%Rd+0.005Rg Typ. @ 2~300V <0.04%Rd+0.01Rg Guar. @ 2~300V |
| Range | Range I: 13V Range II: 300V Automatic Range |
| DC Offset | <10mV Typ./ <60mV Guar |
| Resolution | 1mV |
| Distortion | <0.015%Typ. / <0.05% Guar. |
| Ascends/Descent response | <100us |
Advantage Of Frequency Relay Test System
| ● | With analog (6x310V voltage, 6x20A current) and IEC61850 SMV messages simultaneously output. |
| ● | Provide 8 pairs of LC optical ports, can transmission and receive 36 channels of IEC61850-9-1, IEC61850-9-2 frame format sample values; with optical power test function. |
| ● | Provide 6 ST output optical ports and 2 ST receive optical ports, which can output 6 sets of sampled value messages conforming to IEC60044-7/8 (FT3) format; can receive 2 sets of FT3 format of IEC60044-7/8 specification Sampled value message; |
| ● | Can subscribe/publish GOOSE information or output, receive switching, and realize closed-loop testing of protection; |
| ● | Start up to simulate the IED to actively release GOOSE, sampled value signals, to eliminate the reset process of the device under test caused by link interruption after the test is stopped; |
| ● | The optical port output is sampled or GOOSE can be freely defined; multiple different GOOSE control block information can be subscribed/published; |
F&A
Q: 1. How many countries have KINGSINE exported so far ?
A: KINGSINE brand products have been successfully served clients across more than 70 countries worldwide, inclusive of ABB, SIEMENS, SCHNEIDER, GE etc.
Q: 2. What is the lead time for delivery?
A:It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
Q: 3. Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.
