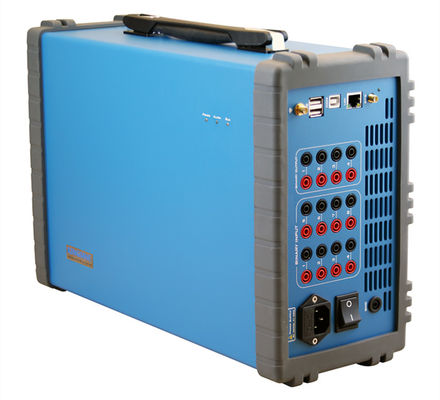

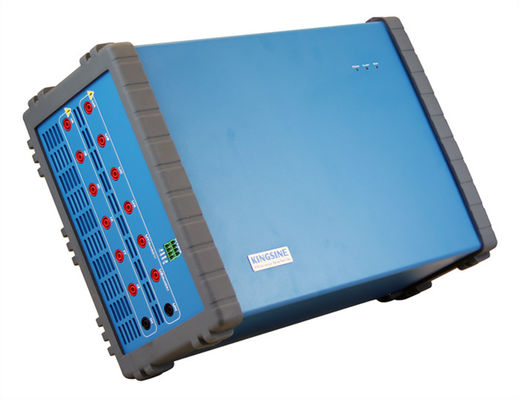

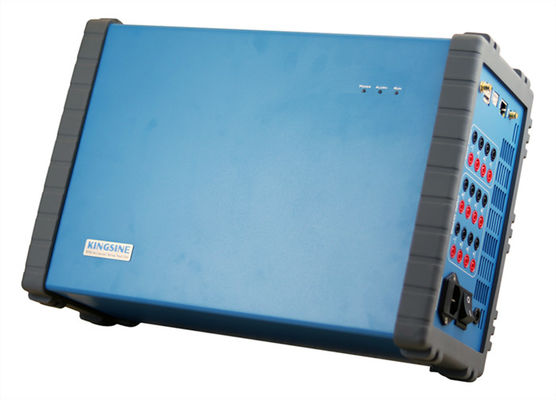

Compact 6-phase 6x300V voltage output KF85 Universal Relay Test Set

Description of KF85 Universal Relay Test Set

Light weight: 10kg, very small size easy carry on flight journey.
6x20A, 6x300V analog output channels.
Compact 6-phase relay test set with high accuracy & full solution (complying IEC61850 sampled value and GOOSE), fully meet all the requirements for detection and debugging of IEC61850 IEDs, Merge Units, station control systems and traditional protection relays.


Feature Of KF85 Universal Relay Test Set

With analog (6x300V voltage, 6x20A current) and IEC61850 SMV messages simultaneously output.

● Provide 8 pairs of LC optical ports, can transmission and receive 36 channels of IEC61850-9-1, IEC61850-9-2 frame format sample values; with optical power test function.

● Provide 6 ST output optical ports and 2 ST receive optical ports, which can output 6 sets of sampled value messages conforming to IEC60044-7/8 (FT3) format; can receive 2 sets of FT3 format of IEC60044-7/8 specification Sampled value message;

● Can subscribe/publish GOOSE information or output, receive switching, and realize closed-loop testing of protection;

● Start up to simulate the IED to actively release GOOSE, sampled value signals, to eliminate the reset process of the device under test caused by link interruption after the test is stopped;

● The optical port output is sampled or GOOSE can be freely defined; multiple different GOOSE control block information can be subscribed/published;

● Sample value channel function, the number of channels can be set freely, up to 36 channels can be configured;

● Automatically import SCL (SCD, ICD, CID, NPI) files to realize automatic configuration of sampled values and GOOSE information, and save sample values and GOOSE configuration information as a configuration file for testing.

● It can automatically detect optical digital signals from MU, protection device and intelligent operation box, and realize automatic configuration function of sampling value and GOOSE information;


Specification Of KF85 Universal Relay Test Set

Can simulate abnormal conditions(loss, misorder, quality abnormality, message re-transmission, data anomaly, out of step, etc.);

● The channel quality of the output SV message can be set, and the simulation unit can be simulated and debug, set to invalid, set to run state, and can simulate double AD inconsistency and other tests.

● Built-in GPS/Beidou timing module with GPS, IRIG-B code synchronization time function;

● Full-featured software test module, AC, status sequence, recloser test, distance protection, overcurrent protection, inverse time overcurrent, zero sequence protection, ramping test, power direction, differential test, frequency test, synchronize test software modules

● With the unit test function, you can test the unit's precision, time accuracy, punctuality accuracy, and data transmission and testing functions.

● Support the graphical display of SCD files, the instrument can graphically display the IED device interconnection relationship and virtual terminal connection.

● With the IRIG-B code transmission function, when the external GPS is used, it can be used as a timing device.



Advantage Of KF85 Universal Relay Test Set


DC Current source

Amplitude & Power

6×10A @ 50W max


±5mA @ <1A
±0.2% @ ≥1A

Ascends/Descent response


AC voltage source

Amplitude & Power

300V @65VA max each


±2mV @ <2V
<0.015%Rd+0.005Rg Typ. @ 2~300V
<0.04%Rd+0.01Rg Guar. @ 2~300V


Range I: 13V
Range II: 300V
Automatic Range

DC Offset

<10mV Typ./ <60mV Guar




<0.015%Typ. / <0.05% Guar.

Ascends/Descent response


● Fully complying IEC61850 Sampling value and GOOSE; (IEC61850-9-1, IEC61850-9-2/(LE), IEC60044-7/8)

● Able to simultaneously output sampling value and analog signals, or subscriber and publish GOOSE message and relay contact binary I/O function.

● Up to 36 sampling value channels can be mapped.





Q:1.How about your after-sales service?

A: We are original manufacturer and always give best and soonest after-sales service.our chief engineer Mr.Terry had travelled to different countries for providing onsite technology support,and our sales managers always provide after-sales service positively.

Q: 2. Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.
Q: 3. What is the shipping method?
A: It could be shipped by air or by express courier (UPS,DHL,TNT,FEDEX, EMS, SF Express and ect) or even by sea.Please refer to us before placing orders.




About US:

Kingsine Electric Automation Co., Ltd. has been specializing in Research & Development, production and sales of Electric Testing & Measurement Instruments since 1999 foundation who is also honored as the High-tech enterprise certification and Software enterprise certificate recognized by China authority. With about high development speed every year, Kingsine win the Chinese top manufacturer for electric test equipmentin the domestic relay-tester market.China Guodian Corporation,State Grid Corporation of China,China Southern Power Grid Company Limited and many other national companies use our products.


With ISO 9001:2008 certified Quality Management with R&D, Production and Marketing, now Kingsine's products are approved by over 70 countries worldwide in many industries of electrical power, metallurgy, petrochemical, railway mining and relative scientific research institution as well as same trade of meter and protective relays factories, and getting the warm welcome from the world large Electricity & Energy Exhibition such as POWER-GEN International of USA, Middle East Electricity of Dubai, HANNOVER MESSE of Germany and FIEE Electrical of Brazil. Its Relay-Tester is suitable working for many world famous relay protection devices such as ABB, SIMENS, ALSTOM, TOSHIBA, SCHNEIDER, AREVA, SEL, GE etc and Kingsine also give the full service with his distribution net from many countries partners of European, Asia and Middle East.
