K3166i Intelligent Protection Relay Tester 13 Channels Outputs

K3166i Intelligent Protection Relay Tester 13 Channels Outputs
K3166i Intelligent Protection Relay Tester 13 Channels Outputs

Large Image :  K3166i Intelligent Protection Relay Tester 13 Channels Outputs

Product Details:
Place of Origin: China
Brand Name: KINGSINE
Certification: CE/ISO9001
Model Number: K3166i
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 100 sets/month
Detailed Product Description
Weight: < 17.5kg Outputs: 6x35A & 7x310V
Warranty: 3 Years Software Upgrade: Free
Complied: IEC61850-9-1, IEC61850-9-2, IEC60044-7/8, Etc
High Light:

Intelligent Protection Relay Tester


K3166i Protection Relay Tester


K3166i relay test equipment

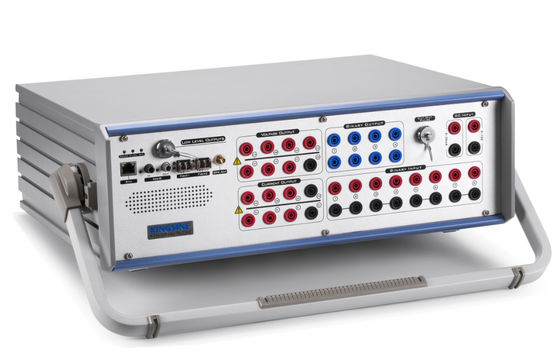

K3166i Intelligent Protection Relay Tester 13 Channels Outputs


Description of K3166i Intelligent Protection Relay Test Set

Recently,KINGSINE K3166i were exported to Poland,the Philippines,Indonesia, and one of our clients just bought three.

The K3166i is all-in-One design, weight < 17.5kg;
High Power & Accuracy with 6x35A & 7x310V analog outputs;
Complying IEC61850 Sampling Value & GOOSE;
The ever-expanding test library templates;
Optional advance functions like energy meter and transducer calibration.

3-Years guarantee of free repair and life-long maintenance


Feature Of K3166i Intelligent Protection Relay Test Set

Universal Relay Test Applications

13 Channels (6x35A & 7x310V) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics.

13 Low-level channels outputs up to 8Vac/10Vdc max.

100/1000Mbit Fiber port for SMV and GOOSE simulations

Variable battery simulator, DC 0-350V, 140Watts max.

Transient play back up to 3KHz

Fully function KRT software testing modules

Graphical test modules and templates for testing of various relays

Quick relay testing facility in Manual mode

Shot/Search/Check, Point & Click testing

RIO/XRIO import & export facility

Switch on to fault test(SOTF)

Power system model for dynamic testing

Online Vector display

Automatic test results assume

Automatic test report creation

Inbuilt GPS and IRIG-B sync end-to-end testing

Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection

Free software upgrade


Specification Of K3166i Intelligent Protection Relay Test Set

Complied IEC61850-9-1, IEC61850-9-2, IEC60044-7/8, etc

Transducer calibration (0.02 class)

Energy meter calibration (Mechanical & Electronic meters)


Type of relays can be tested:



IEC61850 numerical IEDs relay & merge unit


Distance protection relay


Synchronising or synchronism-check relays


Undervoltage relays


Directional Power relays


Undercurrent or underpower relays


Negative sequence overcurrent relays


Overcurrent/ground fault relays


Inverse time overcurrent/ground fault relays


Power factor relays


Overvoltage relays


Voltage or current balance relays


Directional overcurrent relays


Directional ground fault relays


DC overcurrent relays


Phase-angle measuring or out-of-step protection relays


Automatic reclosing devices


Frequency relays


Motor overload protection relays


Differential protection relays


Directional voltage relays


Voltage and power directional relays


Tripping relays


Voltage regulating relays


Overimpedance relays, Z>


Underimpedance relays, Z


Time-delay relays



Advantage Of K3166i Intelligent Protection Relay Test Set

IEC61850 functions:

Fully complying IEC61850 Sampling value and GOOSE; (IEC61850-9-1, IEC61850-9-2/(LE), IEC60044-7/8)

Able to simultaneously output sampling value and analog signals, or subscriber and publish GOOSE message and relay contact binary I/O function.

Up to 36 sampling value channels can be mapped.

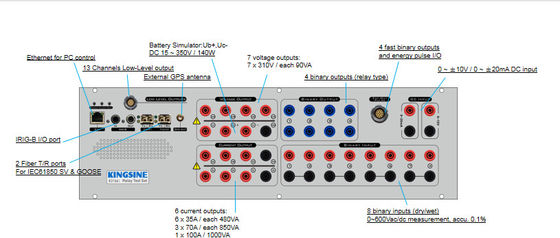

Current Outputs

Voltage Outputs



6×35A @ 450VA max
3×70A @ 850VA max

7×310V @ 90VA max

● IEC61850 SV
● IEC61850 GOOSE
● Energy meter cal.
● Transducer cal.


6×35A @ 450VA max
3×70A @ 850VA max

4×310V @ 124VA max


3×35A @ 450VA max

4×310V @ 124VA max
