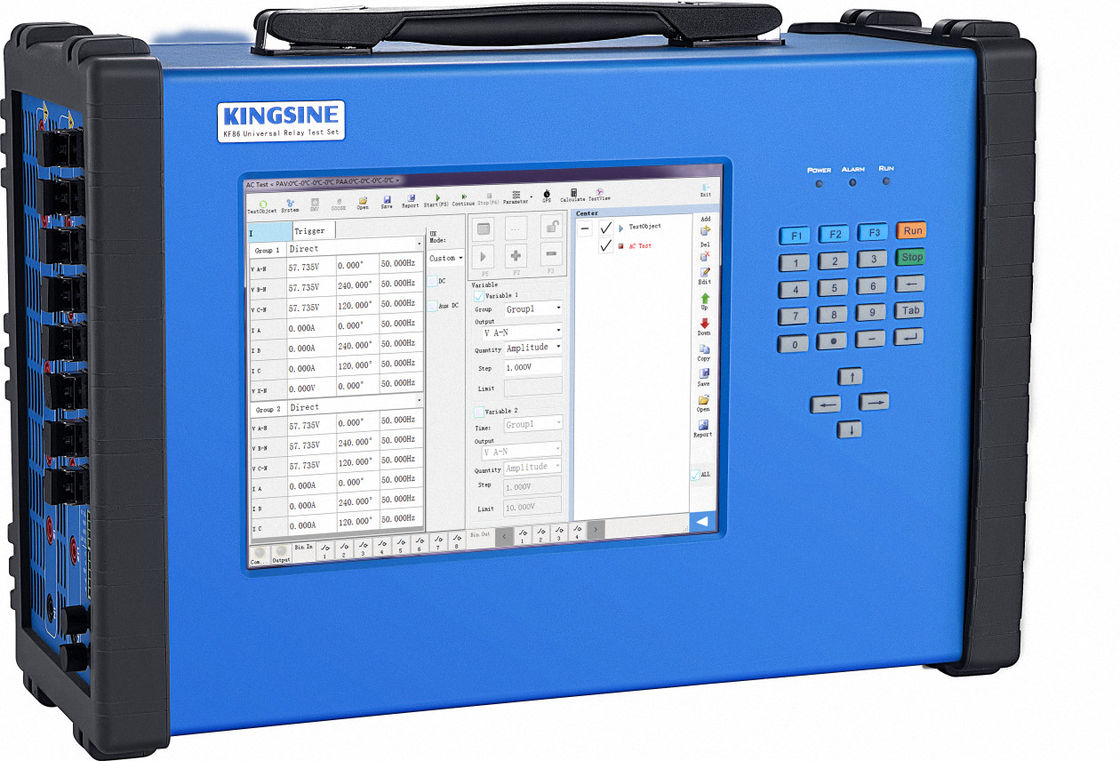

IEC61850 KF86 Universal Relay Test Set Compact 6 Phase High Accuracy Full Solution

IEC61850 KF86 Universal Relay Test Set Compact 6 Phase High Accuracy Full Solution
IEC61850 KF86 Universal Relay Test Set Compact 6 Phase High Accuracy Full Solution

Large Image :  IEC61850 KF86 Universal Relay Test Set Compact 6 Phase High Accuracy Full Solution

Product Details:
Place of Origin: CHINA
Brand Name: KINGSINE
Certification: CE/ISO9001
Model Number: KF86
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 100 sets/month
Detailed Product Description
High Light:

High Accuracy Universal Relay Test Set

,

KF86 Universal Relay Test Set

,

IEC61850 Relay Testing Kit



Description of complying IEC61850 KF86 relay tester

KINGSINE KF86 has light weight 10kg, very small size (390mm*256mm*140mm) for easy carry on flight journey.

6x20A, 6x300V analog output channels.

Compact 6-phase relay test set with high accuracy & full solution (complying IEC61850 sampled value and GOOSE), fully meet all the requirements for detection and debugging of IEC61850 IEDs, Merge Units, station control systems and traditional protection relays.

Feature Of complying IEC61850 KF86 relay tester

● 6x300V voltage, 6x20A current) and IEC61850 SMV messages simultaneously output;

● Built-in dual-core CPU industrial computer, built-in large-capacity SSD solid drive; operating system Embedded Windows 7; 9.7-inch true color LCD screen, 1024×768 resolution, touch screen operation. Can work offline or online;

● Provide 8 pairs of LC optical ports, can transmission and receive 36 channels of IEC61850-9-1, IEC61850-9-2 frame format sample values; with optical power test function;

● Provide 6 ST output optical ports and 2 ST receive optical ports, which can output 6 sets of sampled value messages conforming to IEC60044-7/8 (FT3) format; can receive 2 sets of FT3 format of IEC60044-7/8 specification Sampled value message;

● Can subscribe/publish GOOSE information or output, receive switching, and realize closed-loop testing of protection;

● Simulate 12-channel low level output to test the protection of low level input;

● Start up to simulate the IED to actively release GOOSE, sampled value signals, to eliminate the reset process of the device under test caused by link interruption after the test is stopped;

● The optical port output is sampled or GOOSE can be freely defined; multiple different GOOSE control block information can be subscribed/published;

● Sample value channel function, the number of channels can be set freely, up to 36 channels can be configured;

● Automatically import SCL (SCD, ICD, CID, NPI) files to realize automatic configuration of sampled values and GOOSE information, and save sample values and GOOSE configuration information as a configuration file for testing;

● It can automatically detect optical digital signals from MU, protection device and intelligent operation box, and realize automatic configuration function of sampling value and GOOSE information;

● Can simulate abnormal conditions(loss, misorder, quality abnormality, message re-transmission, data anomaly, out of step, etc.);

● The channel quality of the output SV message can be set, and the simulation unit can be simulated and debug, set to invalid, set to run state, and can simulate double AD inconsistency and other tests;

● Built-in GPS/Beidou timing module with GPS, IRIG-B code synchronization time function;

● Full-featured software test module, AC, status sequence, recloser test, distance protection, overcurrent protection, inverse time overcurrent, zero sequence protection, ramping test, power direction, differential test, frequency test, synchronize test software modules;



Specification Of complying IEC61850 KF86 relay tester

AC current source
Amplitude & Power 6×20A @ 300VA max each;
3×40A @ 520VA max each;
Accuracy ±1mA @ <0.5A
<0.02%Rd+0.01Rg Typ. @ 0.5A~20A
<0.05%Rd+0.02Rg Guar. @ 0.5A~20A
Range Range I: 3A
Range II: 20A
Automatic Range
DC Offset <3mA Typ./ <10mA Guar
Resolution 1mA
Distortion <0.025%Typ. / <0.07% Guar.
Ascends/Descent response <100us
DC Current source
Amplitude & Power 6×10A @ 50W max
Accuracy ±5mA @ <1A
±0.2% @ ≥1A
Ascends/Descent response <100us
AC voltage source
Amplitude & Power 6×300V @ 65VA max each
Accuracy ±2mV @ <2V
<0.015%Rd+0.005Rg Typ. @ 2~300V
<0.04%Rd+0.01Rg Guar. @ 2~300V
Range Range I: 13V
Range II: 300V
Automatic Range
DC Offset <10mV Typ./ <60mV Guar
Resolution 1mV
Distortion <0.015%Typ. / <0.05% Guar.
Ascends/Descent response <100us
DC Voltage source
Amplitude & Power 6×150V @ 75W max
1×300V @ 150W max
Accuracy ±10mV @ <5V
±0.2% @ ≥5V
Ascends/Descent response <100us





Advantage Of complying IEC61850 sampled value and GOOSE KF86 relay tester

IEC61850 functions:

Fully complying IEC61850 Sampling value and GOOSE; (IEC61850-9-1, IEC61850-9-2/(LE), IEC60044-7/8)
Able to simultaneously output sampling value and analog signals, or subscriber and publish GOOSE message and relay contact binary I/O function.
Up to 36 sampling value channels can be mapped.



Fiber port (LC type)
Type 100Base-FX (100Mbit,Fiber, full duplex)
Port Number 8 Pairs
Cable model 62.5/125μm(Multiple-mode fiber, orange)
Wave length 1310nm
Transmission distance > 1Km
Status indication SPD Green (lights): active connection
LinkAcT Yellow (blinking): data exchange
Fiber serial port (ST type)
Standard IEC60044-7/8
Port Number 6 for transmission, 2 for receive
Wave length 850nm


12 Low-Level channels signal output function:

Low-level signal output
Output channels 12 channels
Output port type Phoenix terminal
Output range AC:0~8Vrms
DC: 0~8V
Max current output 5mA
Accuracy <0.<2%(0.01~0.8 Vrms)
<0.1%(0.8~8 Vrms)
Resolution 250µV
Harmonic(THD%) (THD%)<0.1%
Frequency range DC~1.0kHz
Frequency accuracy 0.002%(Normal frequency)
Frequency resolution 0.001Hz
Phase range 0~359.9°
Phase accuracy <0.1°,50/60Hz
Phase resolution ±0.1°



Graphical software interface:

IEC61850 KF86 Universal Relay Test Set Compact 6 Phase High Accuracy Full Solution 0



Inquiry us for more details.



F&A

Q:1. What is the shipping method?
A: To be more efficient, we mostly use air freight. If you prefer other way of transportation, we can according to your request.



Q: 2.How long is the warranty period?

A:We provide 3-years guarantee of free repair and life-long maintenance.



Q: 3.Why do we offer a three-year warranty?

A:First of all,The quality goal of KINGSINE company is that no quality failure occurs within five years of customer use.

The second,KINGSINE has been engaged in the overseas market for 12 years.Up to now,about 3000 sets of equipment have been operating overseas,and the annual failure rate is less than 1%.

The third,Our products are modular design,If there is a fault,it can be remote fault diagnosis,and then express products’ parts to customer for quick repair.
