Multifunctional Power Meter MODBUS - RTU , RS485 Communication PMC180
Wide temperature range
Wide angle display
Mini,Easy installation
High performance

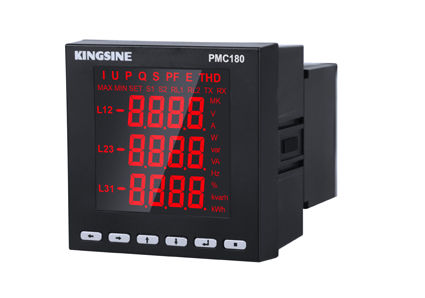

PMC180 three-phase digital power meter
Overview
PMC180 series three-phase digital power meter adopts customized, modularized, high brightness LED display, very beautiful and grand; use low-power microprocessor as core, to achieve all-electric parameter measurement and energy metering. Can optional configure various binary, relay, analog output interface to achieve user’s various needs; integrates RS-485 communication ports, can easily fulfill the integration of various intelligent distribution System. The product function is practical, easy to use and maintenance. Can be used in on-site equipment monitoring and control , provide measure support for electric application experts, provide data basis for SCADA and Smart Grid, provide decision-making basis for effective intelligent energy management.
Function Features
|
Function Features |
PMC180Z |
PMC180C |
PMC180P |
PMC180U |
PMC180I |
|
Instantaneous real virtual value |
|
|
|
|
|
|
Current Single phase & neutral line |
◆ |
|
◆ |
|
◆ |
|
Voltage Line/line & Phase/Line |
◆ |
|
◆ |
◆ |
|
|
Frequency |
◆ |
|
|
|
|
|
Active power Three-phase & single phase |
◆ |
|
◆ |
|
|
|
Reactive power Three-phase & single phase |
◆ |
|
|
|
|
|
Power factor Three-phase & single phase |
◆ |
◆ |
|
|
|
|
Energy |
|
|
|
|
|
|
Active energy |
◆ |
|
|
|
|
|
Reactive energy |
◆ |
|
|
|
|
|
Power Quality |
|
|
|
|
|
|
Harmonic distortion Current & voltage |
◆ |
|
|
|
|
|
31 order harmonic analysis Voltage & current |
◆ |
|
|
|
|
|
Communication |
|
|
|
|
|
|
RS485 /MODBUS protocol |
◆ |
◆ |
◆ |
◆ |
◆ |
|
Display |
|
|
|
|
|
|
LED display |
◆ |
◆ |
◆ |
◆ |
◆ |
|
other |
|
|
|
|
|
|
2-channel DI |
◆ |
|
◆ |
◆ |
◆ |
|
*2-channel DO |
◆ |
|
◆ |
◆ |
◆ |
|
*1 channel AO:4-20Ma |
◆ |
◆ |
◆ |
◆ |
◆ |
|
2-channel limits alarm |
◆ |
|
◆ |
◆ |
◆ |
|
Support program online upgrade |
◆ |
◆ |
◆ |
◆ |
◆ |
Technical parameter
|
Electrical Characteristics |
||
|
Measurement Type |
Three-phase three-wire AC system Three-phase four-wire AC system |
|
|
|
Sampling rate: 64 times per cysle |
|
|
Data refresh rate |
1S |
|
|
Measurement Accuracy |
Current |
0.5% |
|
Voltage |
0.5% |
|
|
Power |
0.5% |
|
|
Frequency |
0.05Hz |
|
|
Active Energy |
1.0% |
|
|
Reactive Energy |
2.0% |
|
|
AO |
1% |
|
|
Input voltage characteristics |
Measuring voltage |
3 X 220/380V(connected directly) |
|
3 X 57.7/100V(connected by CT) |
||
|
Allowed overload |
1.2 times / continuous |
|
|
Input impedance |
1.8MΩ |
|
|
Input current characteristic |
Measuring current |
5A or 1A (connected by CT) |
|
Allowed overload |
1.2 times / continuous |
|
|
Input impedance |
<0.1Ω |
|
|
Binary input |
Working voltage |
12~24 VDC or 220VAC(external power supply) |
|
Input impedance |
12KΩ or 120KΩ |
|
|
Isolation voltage |
2KV |
|
|
Relay output |
Node Type |
Mechanical shock |
|
Node capacity |
220 VAC/5A, 30 VDC/5A |
|
|
4-20mA DC Output |
Open circuit voltage |
15VDC |
|
overload capacity |
≤500Ω |
|
|
Isolation voltage |
2KV |
|
|
Working power supply |
AC |
85~265 VAC/45-65Hz |
|
DC |
100~300 VDC |
|
|
Power dissipation |
< 3W |
|
|
Mechanical properties |
||
|
Weight |
0.5kg |
|
|
IP protection grade |
panel IP52, body IP30 |
|
|
Size |
96 X 96 X 72 mm |
|
|
Operating temperature |
-40~70℃ |
|
|
Storage Temperature |
-50~85℃ |
|
|
Relative Humidity |
5% - 90%RH, No condensation |
|
|
EMC |
||
|
Electrostatic discharge interference |
IEC 61000-4-2, Level 4 |
|
|
Group of anti-fast transient pulse |
IEC 61000-4-4, Level 4 |
|
|
Anti-impact |
IEC 61000-4-5, Level 3 |
|
|
Anti-frequency magnetic field |
IEC 61000-4-8, Level 3 |
|
|
Electrical insulation performance |
||
|
Insulation resistance |
GB/T13729, >50MΩ |
|
|
Frequency withstand voltage |
GB/T13729, AC 2KV 50Hz /1min |
|
|
Impulse voltage |
GB/T13729, 5KV, 1.2/50us |
|
|
|
