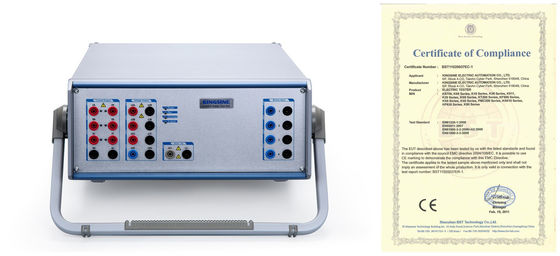

Universal Protection IEC61850 Relay Testing Kit

Universal Protection  IEC61850 Relay Testing Kit
Universal Protection  IEC61850 Relay Testing Kit

Large Image :  Universal Protection IEC61850 Relay Testing Kit

Product Details:
Place of Origin: China
Brand Name: Kingsine
Certification: CE/ISO9001
Model Number: K3066i
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Delivery Time: 15 working days
Payment Terms: L/C,T/T
Supply Ability: 100 sets/month
Detailed Product Description
Voltage Range: 7×310 V Ac Voltage Power: 90 VA
Voltage Accuracy: <0.02%Rd+0.01Rg Typ. @ 0.5A~35A Ac Nominal Input Voltage: 110V/220/230V Ac, Appointed
Nominal Frequency: 50/60Hz Weight: 19.5 Kg
High Light:

IEC61850 Relay Testing Kit


310V Relay Testing Kit


13 Channels Relay Testing Kit

Universal Protection IEC61850 Relay Testing Kit


Description Of Protection Relay Test Support IEC61850

Universal protection relay test function, With fully function of Manual test, state sequencer,Harmonic,recloser test , Line differential, Distance, Mutation distance, Overcurrent, Zero sequencer, Ramping, Power direction, Differential rate, Differential Harmonic, Overexcitation protection, Synchronize, Reserve power supply test, Busbar differential, Frequency test, Dv/Df test, etc.


Feature Of Protection Relay Test Device Support IEC61850

13 Channels (6x35A & 7x310V) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics.
Variable battery simulator, DC 0-350V, 140Watts max.
Automatic test report creation
Inbuilt GPS sync end-to-end testing
Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection
3-Years guarantee of free repair and life-long maintenance
Lightweight, <19.5Kg
Free software upgrade


Specification Of  Protection Relay Test System Support IEC61850

Voltage Outputs
Output Range & Power 7×310 V ac (L-N) 90 VA max each
3×350 V dc (L-N) 105 W max each
Accuracy ±2mV @ 0.2~2V ac
<0.015%Rd+0.005Rg Typ. @ 2~310V ac
<0.04%Rd+0.01Rg Guar. @ 2~310V ac
±10mV @ <5V dc
±0.5% @ ≥5V dc
Voltage Range Range I : 30V
Range II : 310V
Automatic Range
DC Offset <10mV Typ./ <60mV Guar
Resolution 1mV
Distortion <0.015%Typ. / <0.05% Guar.
Current Outputs
Output Range & Power 6×35A ac (L-N) 450 VA max each
3×70A ac (2L-N) 850 VA max each
1×100A ac (6L-N) 1200 VA max
3×20A dc (L-N) 300W max each
Accuracy ±1mA @ <0.5A ac
<0.02%Rd+0.01Rg Typ. @ 0.5A~35A ac
<0.05%Rd+0.02Rg Guar. @ 0.5A~35A ac
±5mA @ <1A dc
±0.5% @ ≥1A dc
Current Range Range I: 3A
Range II: 35A
Automatic Range
DC Offset <3mA Typ./ <10mA Guar
Resolution 1mA
Distortion <0.025%Typ. / <0.07% Guar.
Synchronization Mode  GPS, SMA type antenna connector
Power supply & Environment
Nominal Input Voltage 110V/220/230V ac, Appointed
Permissible Input Voltage 85~264Vac, 125~350VDC, auto-protective
Nominal Frequency 50/60Hz
Permissible Frequency 45Hz~65Hz
Power Consumption 1500 VA max
Connection Type Standard AC socket 60320
Operating Temperature -10℃~55℃
Storage Temperature -20℃~70℃
Humidity <95%RH, non-condensing


Advantage Of Protection Relay Test Unit Support IEC61850

(Optional Modules)

Energy Meter Calibration Hardware is ready, to be active
Sensor Usage Mechanical meters / Electronic meters
Sensor Output High lever:>4.5V, Low level:<0.2V
Pulse Input 1 pulse input port, 5Vdc high level valid only.
Pulse Range 500KHz pulse input Max.
Pulse Output 1 Transistor output, Open-collector, 5Vdc/5mA



Q: Can the device test the function of Synchronising or synchronism-check relays?

A: Yes.

Q: How about the guarantee of repair?

A: All of our products have 3-years guarantee of free repair, and life-long maintenance.

Q: What is your technical advantages?

A: High precision and powerful 6-phase relay test set and commissioning tool;Power & Accuracy in one single PACKAGE, 6x35A, 7x310V analog outputs;The ever-expanding test library templates.
