| Brand Name: | KINGSINE |
| Model Number: | KF900A |
| MOQ: | 1 set |
| Price: | Negotiation |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C,T/T |

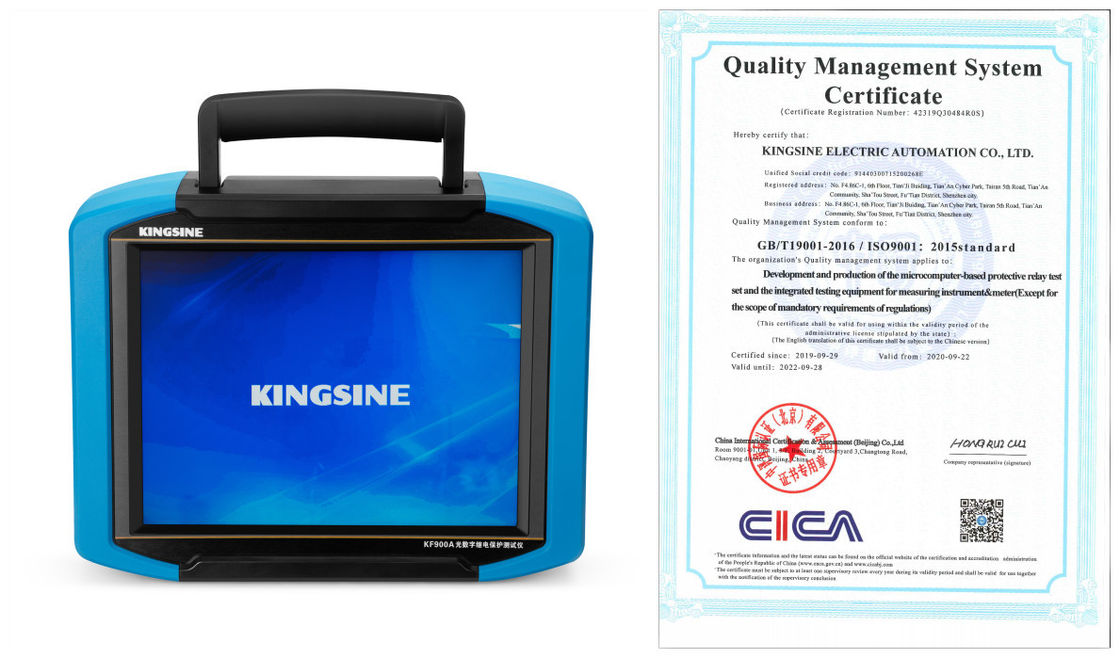

Differential KINGSINE KF900A Relay Test Set IEC61850 IEDs Analyzer
Discription of Differential Relay Test Set
Comprehensive test instrument develop based on intelligent substation testing, mainly function is protection relay testing, sampling value analysis, SCD file analysis/comparison and MMS service. Suitable for detection and testing of IED equipment such as intelligent substation protection relay, measurement and control device, merge unit and intelligent terminal.
Feature Of Differential Relay Test Device
| ● | The smallest digital relay tester, 10.4 inch high-definition capacitive LCD screen, the whole machine full touch screen operation; |
| ● | Universal protection relay test function, With fully function of Manual test, state sequencer, Harmonic, recloser test , Line differential, Distance, Mutation distance, Overcurrent, Zero sequencer, Ramping, Power direction, Differential rate, Differential Harmonic, Overexcitation protection, Synchronize, Reserve power supply test, Busbar differential, Frequency test, Dv/Df test, etc. |
Specification Of Differential Relay Test System
| Item | Parameters |
| Fiber Port | 8 pairs, LC type port, wave-length 1310nm One of the optical ports is a dedicated 1000M optical module, which is suitable for 1000M networks. |
| Fiber serial port | 8, ST type port, wave-length 850nm 6 sending, 2 receiving (Can be used as FT3 or IRIG-B) |
| SV message output dispersion | ≤±80ns |
| Fiber serial port transfer delay | ≤100ns |
| SV output synchronize | Time error between Fiber port <1μs |
| Power Supply | Internal large capacity lithium battery pack Power Adapter:Input 220VAC/50Hz,-20%~+20% Output DC 15V±10% |
Advantage Of Differential Relay Test
| ● | The smallest digital relay tester, 10.4 inch high-definition capacitive LCD screen, the whole machine full touch screen operation; |
| ● | Universal protection relay test function, With fully function of Manual test, state sequencer, Harmonic, recloser test , Line differential, Distance, Mutation distance, Overcurrent, Zero sequencer, Ramping, Power direction, Differential rate, Differential Harmonic, Overexcitation protection, Synchronize, Reserve power supply test, Busbar differential, Frequency test, Dv/Df test, etc. |
| ● | With optical power measurement function, off-site phase detection function, built-in lithium battery power supply, working time is more than 8 hours continuously. |
F&A
Q: 1. How many countries have KINGSINE exported so far ?
A: KINGSINE brand products have been successfully served clients across more than 70 countries worldwide, inclusive of ABB, SIEMENS, SCHNEIDER, GE etc.
Q: 2. What is the lead time for delivery?
A: It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
Q: 3. Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.
