| High Light: | PMC100 Multifunctional Power Meter,Single Phase Multifunctional Power Meter,2 Channel PMC100 Multifunctional Power Meter |
||
|---|---|---|---|
Single Phase Multifunctional Power Meter , 2-Channel PMC100
Single phase electric parameter measurment and energy metering
On-line monitoring of electric parameter limit alarm, relay relevance alarm output
Support 2 channel DI/DO, can configure transducer output
Support MODBUS-RTU, RS485 communication
Overview

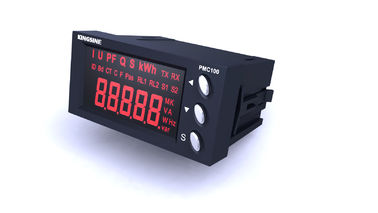

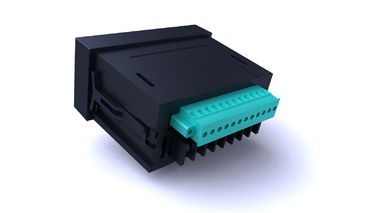

PMC100 series single phase digital power meter adopts customized, modularized, high brightness LED display, very beautiful and grand; use low-power microprocessor as core, to achieve all-electric parameter measurement and energy metering. Can optional configure various binary, relay, analog output interface to achieve user’s various needs; integrates RS-485 communication ports, can easily fulfill the integration of various intelligent distribution System. The product function is practical, easy to use and maintenance. Can be used in on-site equipment monitoring and control , provide measure support for electric application experts, provide data basis for SCADA and Smart Grid, provide decision-making basis for effective intelligent energy management.
Function Features
|
Function Features |
PMC100Z |
PMC100C |
PMC100P |
PMC100F |
PMC100U |
PMC100I |
PMC100N |
|
Instantaneous real virtual value |
|
|
|
|
|
|
|
|
Current |
◆ |
|
◆ |
|
|
◆ |
◆ |
|
Voltage |
◆ |
|
◆ |
|
◆ |
|
◆ |
|
Frequency |
◆ |
|
|
◆ |
|
|
◆ |
|
Active power |
◆ |
|
◆ |
|
|
|
◆ |
|
Reactive power |
◆ |
|
|
|
|
|
◆ |
|
Power factor |
◆ |
◆ |
|
|
|
|
◆ |
|
Energy |
|
|
|
|
|
|
|
|
Active energy |
◆ |
|
|
|
|
|
◆ |
|
Communication |
|
|
|
|
|
|
|
|
RS485 /MODBUS protocol |
◆ |
◆ |
◆ |
◆ |
◆ |
◆ |
◆ |
|
Display |
|
|
|
|
|
|
|
|
LED display |
◆ |
◆ |
◆ |
◆ |
◆ |
◆ |
|
|
Other |
|
|
|
|
|
|
|
|
2-channel DI |
◆ |
◆ |
◆ |
◆ |
◆ |
◆ |
|
|
2-channel DO |
◆ |
◆ |
◆ |
◆ |
◆ |
◆ |
|
|
1 channel AO :4-20mA |
◆ |
◆ |
◆ |
◆ |
◆ |
◆ |
|
|
2-channel limits alarm |
◆ |
◆ |
◆ |
◆ |
◆ |
◆ |
◆ |
|
Support program online upgrade |
◆ |
◆ |
◆ |
◆ |
◆ |
◆ |
◆ |
Technical Parameter
|
Electrical Characteristics |
||
|
Measurement Type |
Single phase AC system |
|
|
|
Sampling rate per cycle: 64 times |
|
|
Data refresh rate |
1S |
|
|
Measurement Accuracy
|
Current |
0.2% |
|
Voltage |
0.2% |
|
|
Power |
0.5% |
|
|
Frequency |
0.05Hz |
|
|
Active Energy |
1.0% |
|
|
AO |
1% |
|
|
Input voltage characteristics |
Measuring voltage |
0~600 V (Direct Access) |
|
Allowed overload |
1.2 times / continuous |
|
|
Input impedance |
1.8MΩ |
|
|
Input current characteristic |
Measuring current |
5A or 1A (Via CT Connect) |
|
Allowed overload |
1.2 times / continuous |
|
|
Input impedance |
<0.1Ω |
|
|
Binary INPUT |
Working voltage |
12~24 VDC (external power supply) |
|
Input impedance |
12KΩ |
|
|
Isolation voltage |
2KV |
|
|
Relay output |
Node Type |
Mechanical shock |
|
Node capacity |
220 VAC/5A, 30 VDC/5A |
|
|
4-20mA DC Output |
Open circuit voltage |
5VDC |
|
Overload capacity |
≤200Ω |
|
|
Isolation voltage |
2KV |
|
|
Working power supply |
AC |
85~265 VAC/45-65Hz |
|
DC |
100~300 VDC |
|
|
Power dissipation |
<2.5W |
|
|
Mechanical properties |
||
|
Weight |
0.3kg |
|
|
IP protection grade |
panel IP52, body IP30 |
|
|
Size |
96 X 48 X 72 mm |
|
|
Operating temperature |
-25~70℃ |
|
|
Storage Temperature |
-40~85℃ |
|
|
Relative Humidity |
5% - 90%RH, No condensation |
|
|
EMC |
||
|
Electrostatic discharge interference |
IEC 61000-4-2, Level 4 |
|
|
Group of anti-fast transient pulse |
IEC 61000-4-4, Level 4 |
|
|
Anti-impact |
IEC 61000-4-5, Level 3 |
|
|
Anti-frequency magnetic field |
IEC 61000-4-8, Level 3 |
|
|
Electrical insulation performance |
||
|
Insulation resistance |
GB/T13729, >50MΩ |
|
|
Frequency withstand voltage |
GB/T13729, AC 2KV 50Hz /1min |
|
|
Impulse voltage |
GB/T13729, 5KV, 1.2/50us |
|
