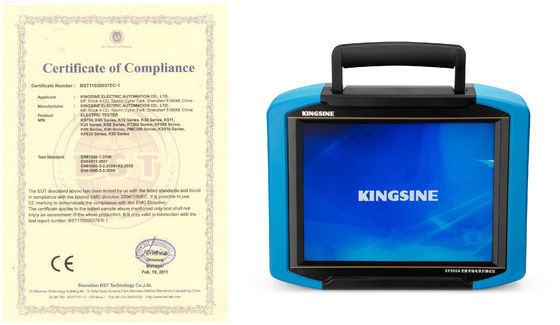

6 Phase Relay Test System KINGSINE KF900A Protection Relay Tester

Brand Name: KINGSINE
Model Number: KF900A
MOQ: 1 set
Price: Negotiation
Delivery Time: 15 WORKING DAYS
Payment Terms: L/C,T/T
Detail Information
Place of Origin:
China
Certification:
CE/ISO9001
Fiber Port:
8 Pairs
USB Port:
1
SV Message Output Dispersion:
≤±80ns
Fiber Serial Port Transfer Delay:
≤100ns
Size:
320mm×250mm×100mm(L×W×H)
Weight:
<2.75kg
Supply Ability:
100 SETS/MONTH
Highlight:

40kHz Relay Test System

,

CE KINGSINE KF900A

,

KF900A Protection Relay Tester

Product Description

6 Phase Relay Test System KINGSINE KF900A Protection Relay Tester



KF900A RELAY TEST is a portable field testing equipment with excellent performance; Elegance and polished appearance with aluminum alloy chassis and PC panel, within the ARM chip control, LCD screen display voltage and current output stopwatch, it could output a full isolation way for adjustable AC/DC voltage, and AC/DC current and a way for adjustable DC voltage; the output loop with double overload protection with large output capacity ,small volume, light weight, high reliability ,It Suitable for field calibration and test for various relay.



Feature Of 6 Phase Electrical secondary injection protection relay Test Kit

The smallest digital relay tester, 10.4 inch high-definition capacitive LCD screen, the whole machine full touch screen operation;Universal protection relay test function, With fully function of Manual test, state sequencer, Harmonic, recloser test , Line differential, Distance, Mutation distance, Overcurrent, Zero sequencer, Ramping, Power direction, Differential rate, Differential Harmonic, Overexcitation protection, Synchronize, Reserve power supply test, Busbar differential, Frequency test, Dv/Df test, etc.



Specification Of 6 Phase Electrical secondary injection protection relay Test System



Item Parameters
Fiber Port 8 pairs, LC type port, wave-length 1310nm
One of the optical ports is a dedicated 1000M optical module, which is suitable for 1000M networks.
Fiber serial port 8, ST type port, wave-length 850nm
6 sending, 2 receiving (Can be used as FT3 or IRIG-B)
Ethernet port 1,100Base-TX,RJ45
USB Port 1
GPS Port 1 channel, GPS signal receiver internal
Analog input port(Optional) 4 or 8 pairs, 18 bit AD, 40kHz sampling rate, input range 0-250VAC
Hard contact binary input 1 Pair, Adaptive empty contact or potential contact (30~250V), response time ≤500μs
Hard contact binary output 1 pair, Open-collect type, blocking capacity more than 250V, 0.3A (DC), response time ≤ 100μs



Advantage Of 6 Phase Electrical secondary injection protection relay Test Set



Support importing substation Excel point table, obtain channel mapping configuration of remote measure signal and remote control signal through SCD file, automatically generate station signal point table, and directly transmit remote measure signal and remote control signal according to point number order;
With SV, GOOSE message monitoring function. Real-time display of SV sample value amplitude, phase, frequency, waveform, vector and message source code, real-time display GOOSE virtual terminal status and message source code, record each virtual terminal turn over time and test GOOSE message transmission mechanism;
Supports transmission delay, SV message integrity, SV output accuracy, merge unit dispersion of timing and punctuality accuracy measurement;



F&A

Q: 1. How many countries have KINGSINE exported so far ?
A: KINGSINE brand products have been successfully served clients across more than 70 countries worldwide, inclusive of ABB, SIEMENS, SCHNEIDER, GE etc.



Q: 2. What is the lead time for delivery?
A:It depends on the order quantity and the season you place the order.Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.

Q: 3. Do you have any MOQ limit?
A: MOQ is 1 set. Please feel free to contact us for more detail.
